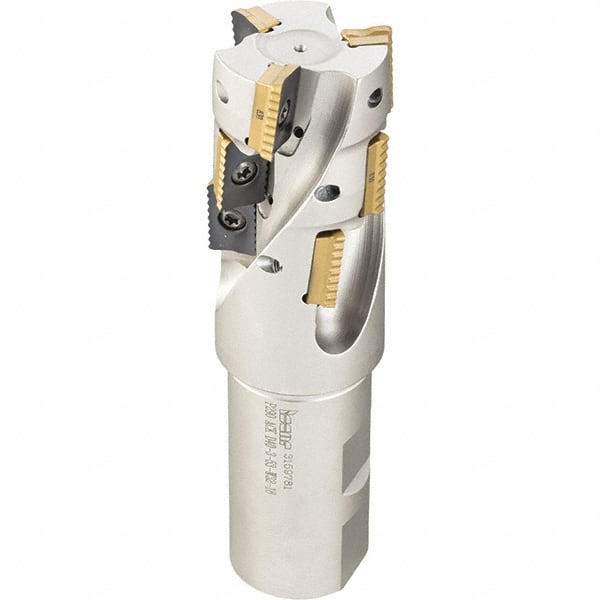

Iscar - 2" Cut Diam, 6.3" Max Depth of Cut, 2" Shank Diam, 10.63" OAL, Indexable Square Shoulder End Mill - P290 AC.T 1806.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series MillShred
Item #: 50821255
Brand: Iscar
Model #: 3110803
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Overall Length/Projection (Decimal Inch) | 10.6300 |
| Lead Angle | 0 |
| Series | MillShred |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 6.3000 |
| Number of Cutter Inserts | 27 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | P290 ACK-18 |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 7.2800 |
| Weldon Flat | Yes |
| Insert Compatibility | P290 AC.T 1806.. |
| Shank Length (Decimal Inch) | 3.3500 |
