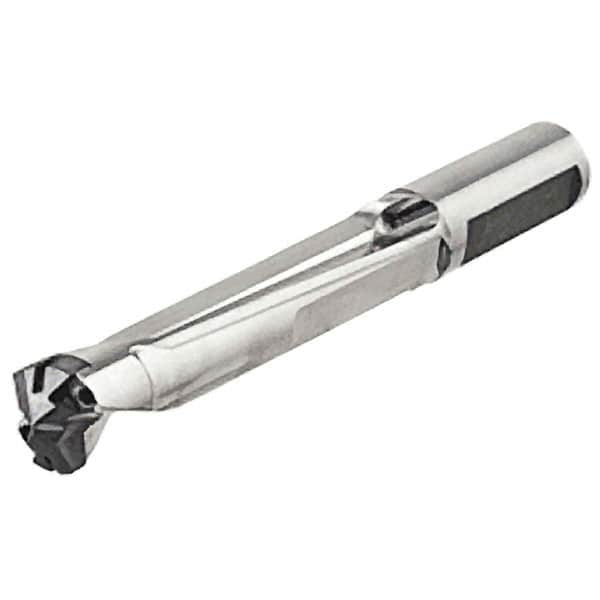

Iscar - 7.5mm to 7.9mm Diam, 5xD, 37.59mm Max Depth, 8mm Shank Diam, 85.34mm OAL, Replaceable-Tip Drill - ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 7 Seat Size, 50842723 Toolholder, Series UniSumoCham
Item #: 50842723
Brand: Iscar
Model #: 3260169
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniSumoCham |
| Minimum Drill Diameter (mm) | 7.49 |
| Minimum Drill Diameter (Decimal Inch) | 0.2950 |
| Maximum Drill Diameter (mm) | 7.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.3110 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.4800 |
| Maximum Drill Depth (mm) | 37.59 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Style | ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 7 |
| Toolholder Style | DCNS |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 49.28 |
| Body Length (Decimal Inch) | 1.9400 |
| Overall Length (mm) | 85.34 |
| Overall Length (Decimal Inch) | 3.3600 |
| Shank Length (mm) | 36.07 |
| Shank Length (Decimal Inch) | 1.4200 |
