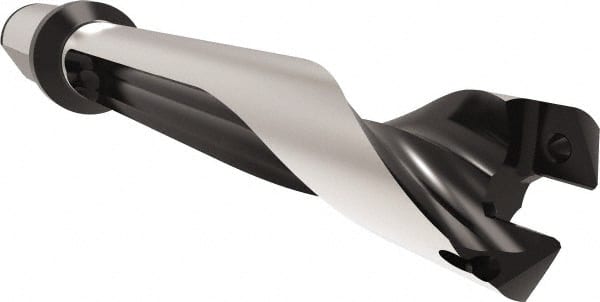

Allied Machine and Engineering - Series 26, 26 to 28.99mm Diam, 32mm Diam Straight Shank with Flange, Straight Flute Spade Drill - 145mm Max Depth, 186.1mm Body Length, 246.1mm OAL, Standard Length, Through Coolant
Item #: 50920065
Brand: Allied Machine and Engineering
Model #: 60526S-32FM
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 26 |
| Minimum Drill Diameter (mm) | 26.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.0236 |
| Maximum Drill Diameter (mm) | 28.99 |
| Maximum Drill Diameter (Decimal Inch) | 1.1413 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Spade Drill Length | Standard Length |
| Overall Length (mm) | 246.10 |
| Overall Length (Decimal Inch) | 9.6890 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 145.00 |
| Maximum Drill Depth (Decimal Inch) | 5.7087 |
| Flute Type | Straight Flute |
| Body Length (Decimal Inch) | 7.3268 |
| Body Length (mm) | 186.10 |
| Shank Length (Decimal Inch) | 2.3622 |
| Shank Length (mm) | 60.00 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
