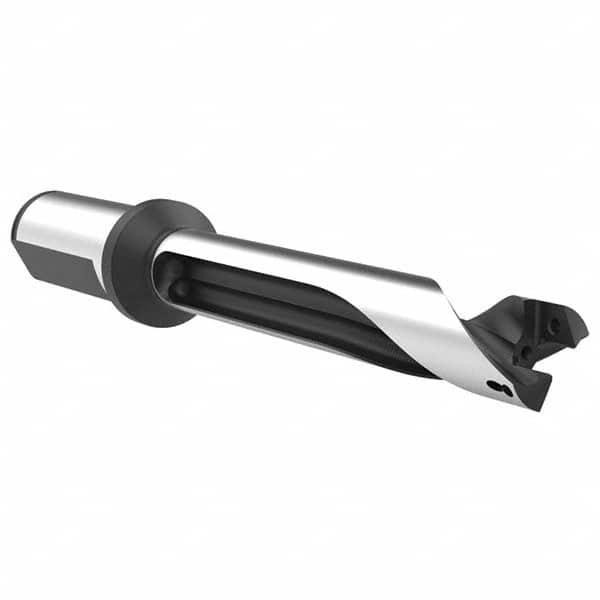

Allied Machine and Engineering - 20mm to 22mm Diam 7xD 153.9mm Max Depth Straight Flute Spade Drill
Item #: 12329520
Brand: Allied Machine and Engineering
Model #: ST07200-25FM
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 20 |
| Minimum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (mm) | 22.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 25.00 |
| Overall Length (mm) | 244.10 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 153.90 |
| Flute Type | Straight Flute |
| Body Length (mm) | 188.10 |
| Shank Length (mm) | 56.00 |
| Series Code/Seat Size | 20 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
