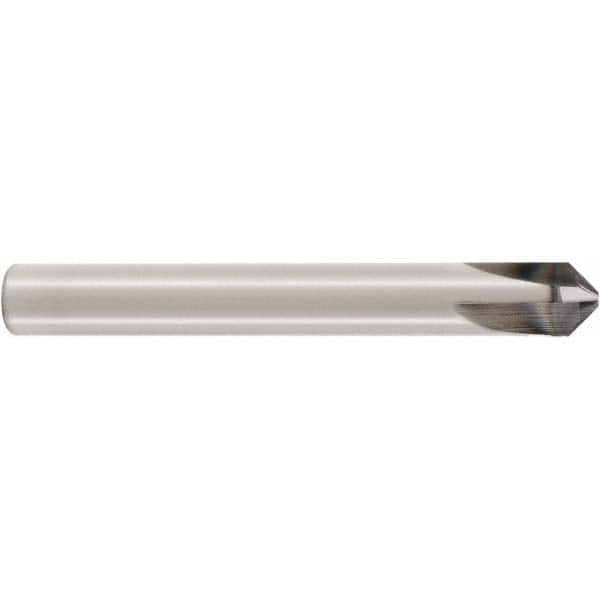

Seco - 4mm Diam 3 Flute Single End Solid Carbide Chamfer Mill
Item #: 81019267
Brand: Seco
Model #: 02881635
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics, and other tough-to-machine materials. It is commonly used in high performance applications.
Sira, also known as Siron-A , is a coatings that offers heat resistance, allows for smooth chip flows and enhances tool life. It is used on a variety of materials including steel, stainless steel and cast iron. Siron-A is a proprietary coating exclusive to Seco Tools, Inc.
| Product Specifications | |
|---|---|
| Cutter Head Diameter (mm) | 4.00 |
| Included Angle A | 90 |
| Chamfer Mill Material | Solid Carbide |
| Chamfer Mill Finish/Coating | SIRA |
| Overall Length (mm) | 50 |
| Shank Diameter (mm) | 4 |
| Number of Flutes | 3 |
| End Type | Single |
| Length of Cut (Decimal Inch) | 0.0630 |
| Cutting Direction | Right Hand |
| Tool Application | Chamfering |
| Series/List | JS509 |
