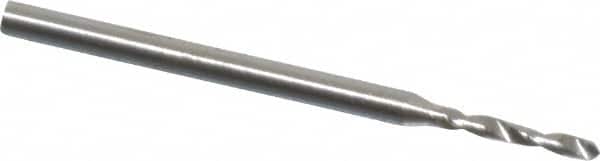

Walter-Titex - 0.93mm, 118° Point, Vanadium High Speed Steel Micro Drill Bit
Item #: 01480938
Brand: Walter-Titex
Model #: 5062927
Features and Benefits
Vanadium high speed steel (HSSE) is made of HSS, carbon, vanadium carbide and other alloys to increase abrasive wear resistance and toughness. It is commonly used in general applications on stainless steels and high silicon aluminums.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
Regular, also known as medium spiral bits, are used in general purpose applications. They are used on soft, nonferrous materials.
Straight shanks are used for general purpose applications. The shank is smaller than the drill bit diameter. They are used with portable drills and drill presses on ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.0366 |
| Drill Bit Size (mm) | 0.93 |
| Shank Diameter (mm) | 1.50 |
| Drill Point Angle | 118 |
| Drill Bit Material | Vanadium High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 25.00 |
| Flute Length (mm) | 6.00 |
| Through Coolant | No |
| Flute Type | Spiral |
| Spiral Type | Regular Spiral |
| Point Type | Standard |
| Shank Type | Straight |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.004 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 1899 |
| Drill Bit Grade | General Purpose |
| Series/List | A3143 |
