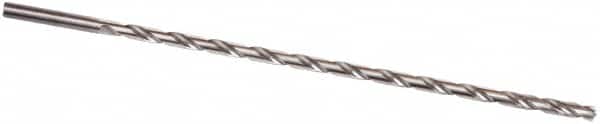

Kennametal - 10.5mm 135° 2-Flute Solid Carbide Extra Length Drill Bit
Item #: 58515388
Brand: Kennametal
Model #: 3891700
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 10.50 |
| Drill Bit Size (Decimal Inch) | 0.4134 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Bright |
| Overall Length (mm) | 348.00 |
| Through Coolant | Coolant Through |
| Shank Diameter (Decimal Inch) | 0.4331 |
| Shank Diameter (mm) | 11.00 |
| Flute Length (mm) | 292.00 |
| Flute Length (Decimal Inch) | 11.4961 |
| Cutting Direction | Right Hand |
| Flute Length x Diameter Ratio | 26xD |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Point Type | Standard |
| Shank Type | Straight |
| Spiral Type | Regular Spiral |
| Maximum Drilling Depth (mm) | 269.00 |
| Maximum Drilling Depth (Decimal Inch) | 10.5906 |
| Shank Length (Decimal Inch) | 1.8110 |
| Shank Length (mm) | 46.00 |
| Threaded Shank | No |
| Drill Point Length (mm) | 1.94 |
| Drill Point Length (Decimal Inch) | 0.0763 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0011 to 0.0000 |
| Drill Bit Diameter Tolerance (mm) | -0.027 to 0.000 |
| Series/List | B273-HPS |
