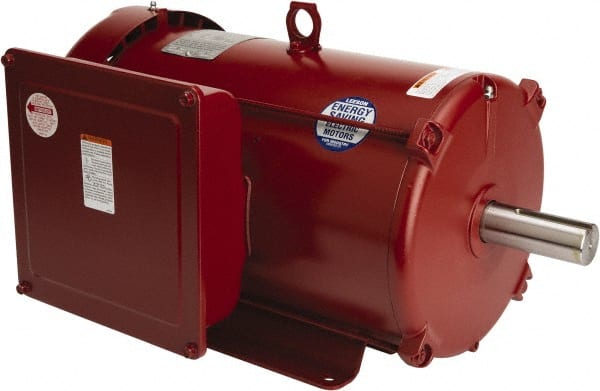

Leeson - 10 Max hp, 1,800 Max RPM, Electric AC DC Motor - 230 V Input, Single Phase, 215T Frame, 1-3/8" Shaft Diam, Rigid Base Mount, TEFC Enclosure
Item #: 51037349
Brand: Leeson
Model #: 140706.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 10 |
| Minimum Horsepower | 10 |
| Name Plate RPMs | 1740 |
| Phase | Single |
| Input Voltage | 230 |
| Frame Size | 215T |
| Full Load Amperage | 40.0 |
| Mount Type | Rigid Base |
| Bearing Type | Double Shielded Ball |
| Shaft Diameter (Decimal Inch) | 1.3750 |
| Service Factor Rating | 1 |
| Frame Material | Steel |
| Insulation Class | F |
| Applications | Agriculture |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
