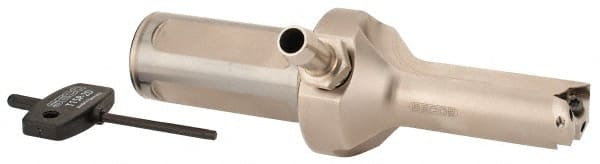

Seco - 2.124" Max Drill Depth, 2xD, 1-1/16" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 51047686
Brand: Seco
Model #: 36813
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD572 |
| Drill Diameter (Inch) | 1-1/16 |
| Drill Diameter (Decimal Inch) | 1.0625 |
| Maximum Drill Depth (Decimal Inch) | 2.1240 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2990 |
| Overall Length/Projection (Decimal Inch) | 6.6000 |
| Insert Compatibility (Outside or Peripheral) | WCMX 050308.. |
| Insert Compatibility | WCMX 06T308-86 |
| Flute Length (Decimal Inch) | 2.3210 |
| Body Length (Decimal Inch) | 3.5020 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 2.1650 |
| Series | PerfoMAX |
