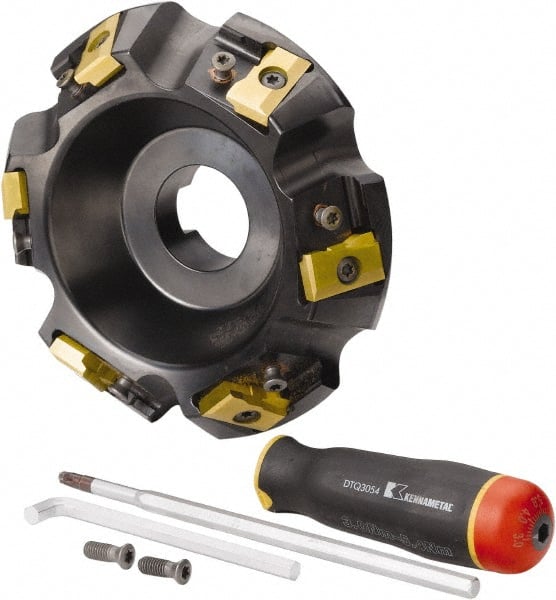

Kennametal - 5" Cut Diam, 1-1/2" Arbor Hole, 21.41mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 6 Inserts, LN.U 2210... Insert, Right Hand Cut, 6 Flutes, Series MEGA60
Item #: 51082618
Brand: Kennametal
Model #: 4147496
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (mm) | 151.94 |
| Cutting Diameter (Decimal Inch) | 5.9820 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 2.3750 |
| Overall Height (mm) | 60.33 |
| Insert Compatibility | LN.U 2210... |
| Series | MEGA60 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 21.41 |
| Maximum Depth of Cut (Decimal Inch) | 0.8430 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | MEGA |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 3.8100 |
| Hub Diameter (mm) | 96.77 |
| Maximum Body Diameter (Decimal Inch) | 6.1810 |
| Maximum RPM | 11040 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | LN.U 221012PNSR |
