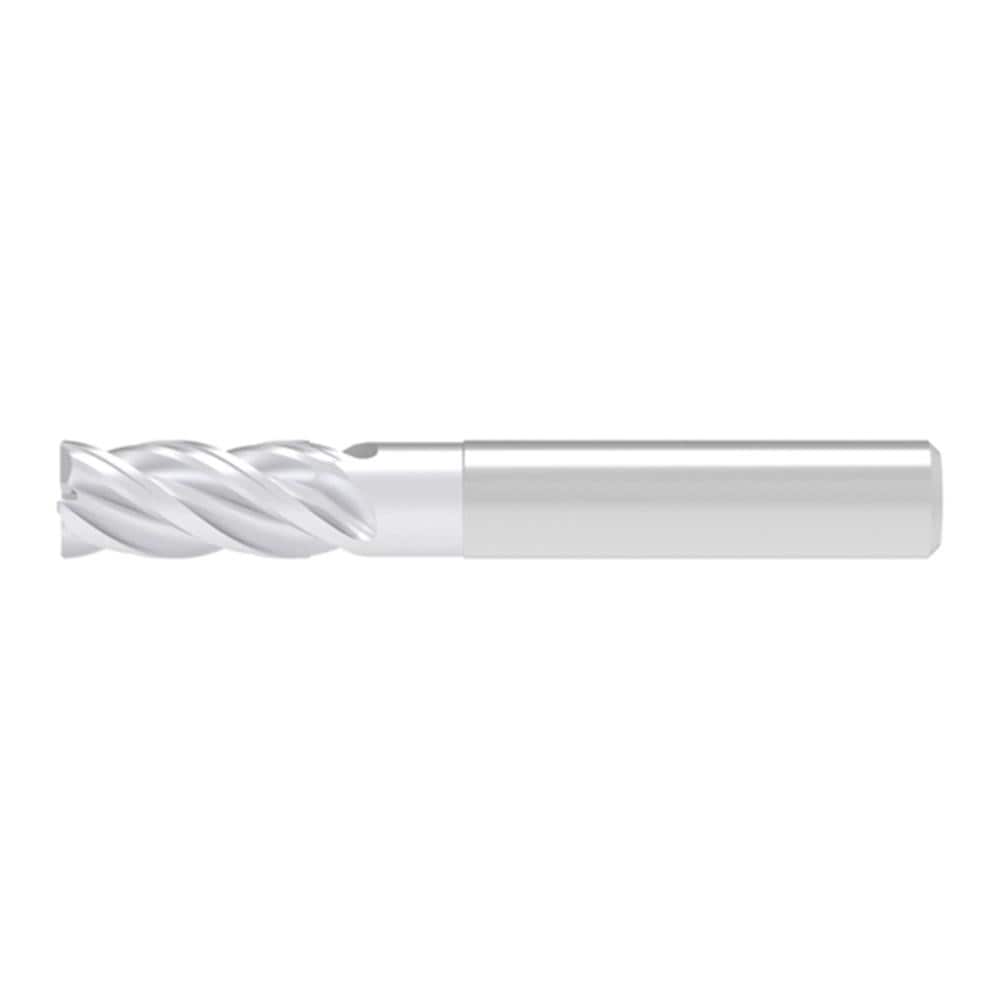

Corner Chamfer End Mill: 18.00 mm Dia, 38.00 mm LOC, 4 Flute, 0.30 mm Chamfer Width, Solid Carbide
Item #: 09295239
Brand: WNT
Model #: 5097418200
Product Specifications
| Mill Diameter (mm) | 18.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 38.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | DPB72S |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.30 |
| Overall Length (mm) | 106.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 18.00 |
| Neck Diameter (mm) | 17.500 |
| UNSPSC Code | 23241614 |
| Series | 50974 |
