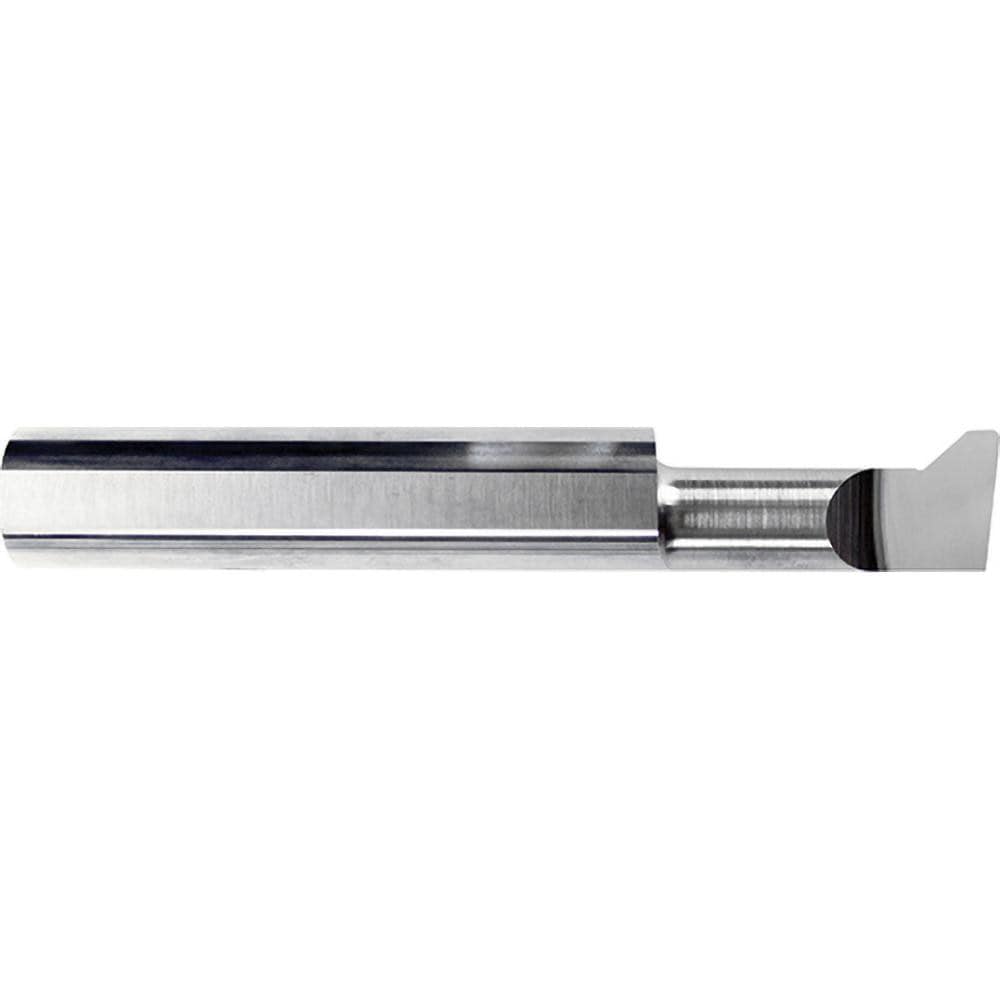

Back Boring/Chamfering Bar: 1/2" Min Bore Dia, 1" Max Bore Depth, Right Hand, 1/2" Shank Dia, Micrograin Solid Carbide
Item #: 09273798
Brand: Internal Tool
Model #: 55-1150-C
Product Specifications
| Boring Bar Type | Back Boring; Chamfering |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
| Material | Solid Carbide |
| Material Grade | Micrograin |
| Maximum Bore Depth (Decimal Inch) | 1.0000 |
| Projection (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 3 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Bar End Angle | 5 |
| Series | 55 |
| Maximum Bore Depth (Inch) | 1 |
| Minimum Bore Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 3.0000 |
| Primary Workpiece Material | Bronze; Aluminum; Stainless Steel; Brass; Cast Iron; Titanium; Plastic; Nickel; Magnesium; Copper; Steel |
| Relief Angle | 4 |
| UNSPSC Code | 23241601 |
