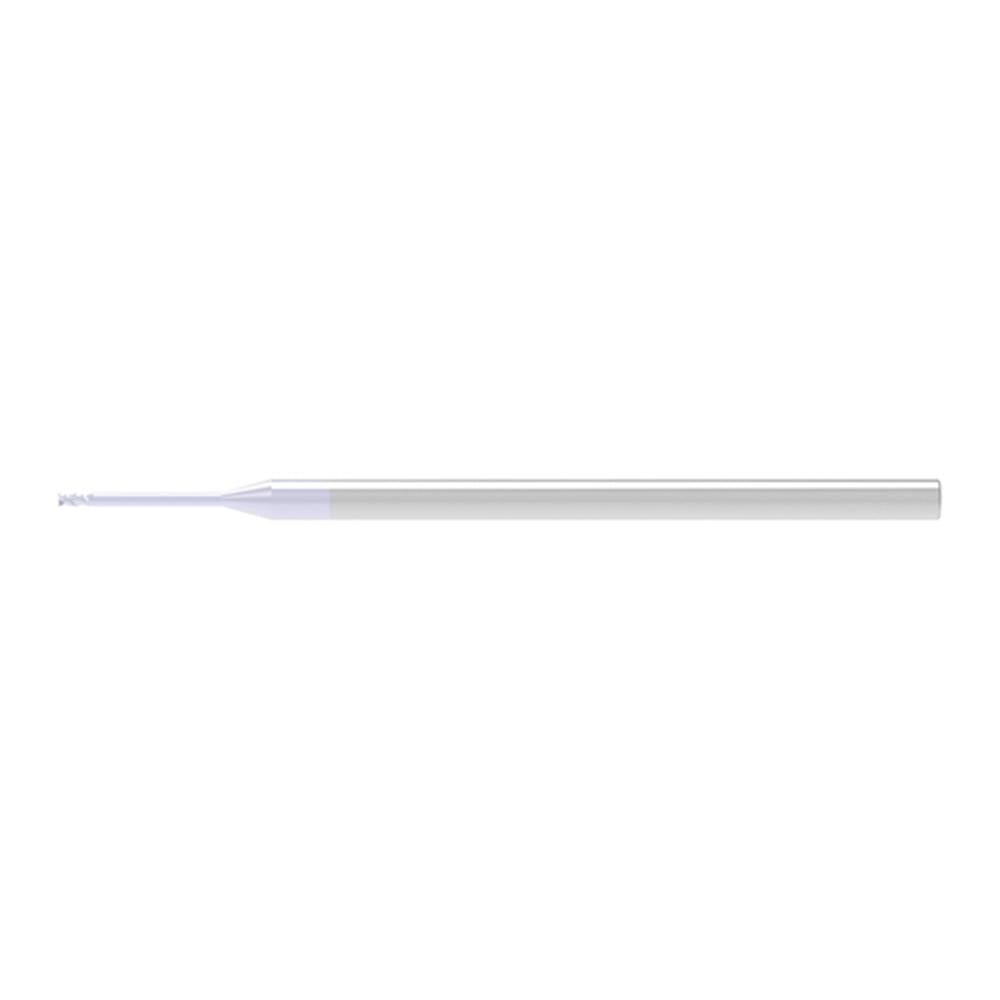

Corner Chamfer End Mill: 1.20 mm Dia, 1.20 mm LOC, 2 Flute, 0.12 mm Chamfer Width, Solid Carbide
Item #: 09764648
Brand: WNT
Model #: 50900123
Product Specifications
| Mill Diameter (mm) | 1.20 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 1.20 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Ti1001 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.12 |
| Overall Length (mm) | 65.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Extra Long |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 3.00 |
| Neck Diameter (mm) | 1.150 |
| UNSPSC Code | 23241614 |
| Series | 50900 |
