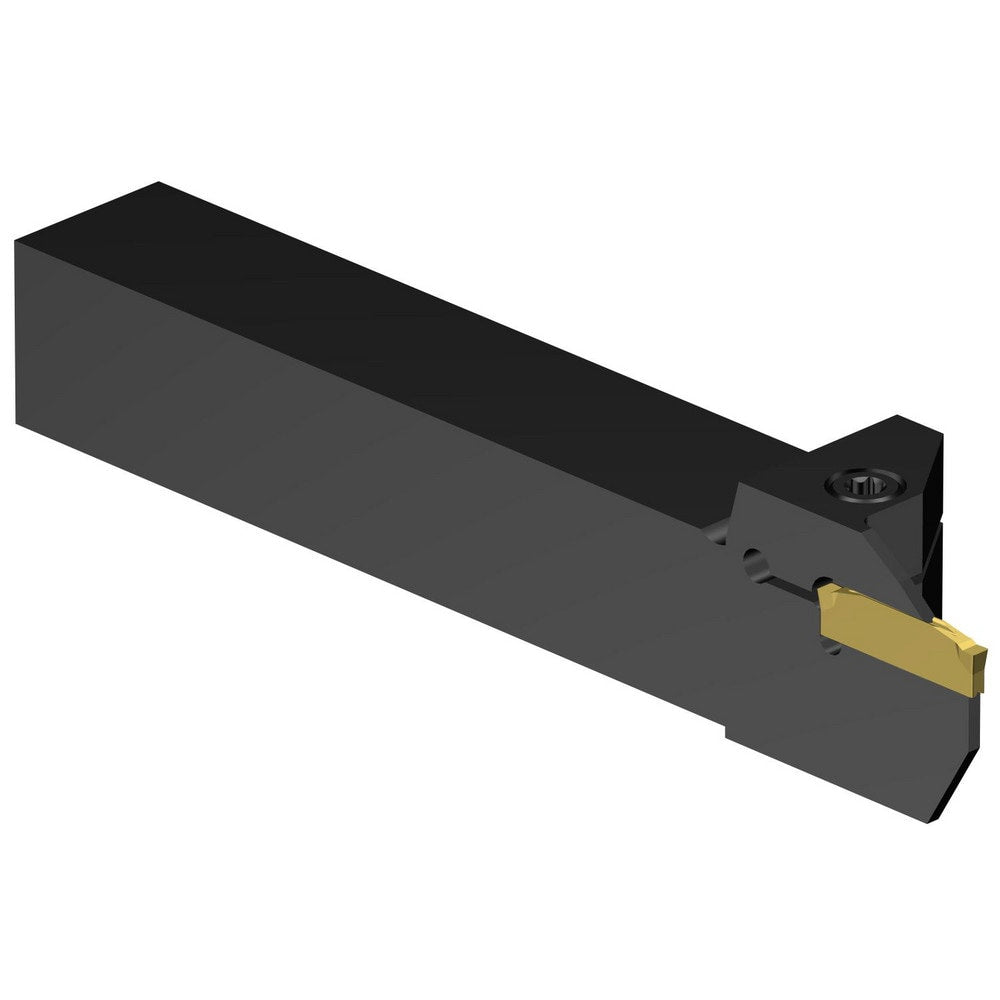

Indexable Grooving/Cut-Off Toolholders; Hand of Holder: Left Hand; Maximum Depth of Cut (Decimal Inch): 0.5900; Maximum Depth of Cut (mm): 14.99; Maximum Groove Width (Decimal Inch): 0.0788; Maximum Groove Width (mm): 2.24; Minimum Groove Width (Decimal I
Item #: 05979992
Brand: Sandvik Coromant
Model #: 8196287
Product Specifications
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Maximum Depth of Cut (mm) | 14.99 |
| Maximum Groove Width (Decimal Inch) | 0.0788 |
| Maximum Groove Width (mm) | 2.24 |
| Minimum Groove Width (Decimal Inch) | 0.0728 |
| Minimum Groove Width (mm) | 1.85 |
| Toolholder Style | C2R-RSA..R/L..DB |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | E2 |
| Insert Compatibility | C2I-E2-0200- |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Series | CoroCut 2 |
| Cutting Tool Application | Grooving; Cut-Off; Parting |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Head Height (Decimal Inch) | 0.75 |
| Head Height (mm) | 19.050 |
| Manufacturers Catalog Number | C2R-RSA12-LE15DB |
| Complete Insert Compatibility | CoroCut 2 -size E (C2I-E2-0200-) |
| Insert Seat Size | 2.0 |
| Number of Inserts Included in Order | 0 |
| Coolant Through | No |
| UNSPSC Code | 27112809 |
