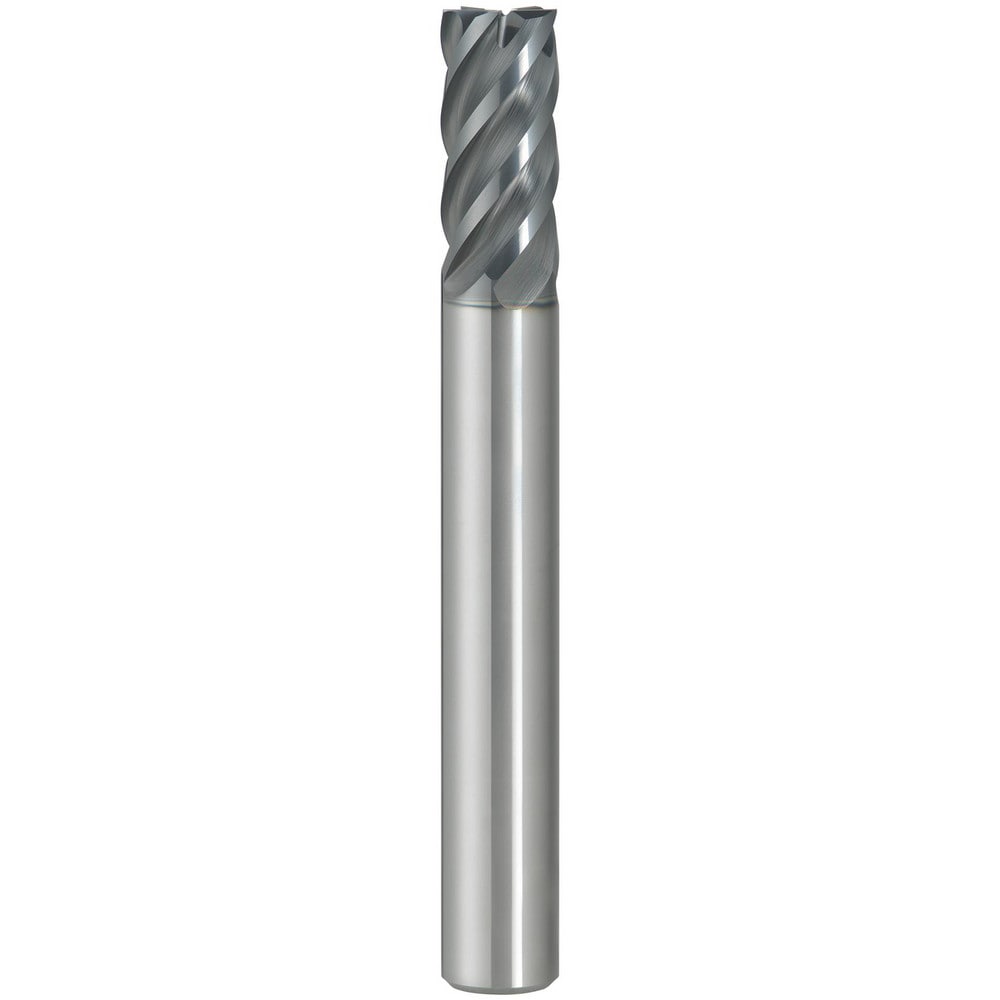

Square End Mill: 1/2" Dia, 1-1/8" LOC, 5 Flute, Solid Carbide
Item #: 09189689
Brand: Mitsubishi
Model #: 10624739
Product Specifications
| Mill Diameter (mm) | 12.70 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.1250 |
| Length of Cut (Inch) | 1-1/8 |
| Length of Cut (mm) | 28.58 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Single Or Double End | Single |
| Coating/Finish Family | AlCrN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 39-41 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Coating/Finish | AlCrN |
| Variable Helix | Yes |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Carbide |
| Length Type | Medium |
| Neck Length (Decimal Inch) | 1.1250 |
| Neck Length (mm) | 28.58 |
| Mill Diameter Tolerance | 0; -0.012 |
| Shank Diameter Tolerance | h6 |
| Series | VQ Endmill VQ5MHV |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
