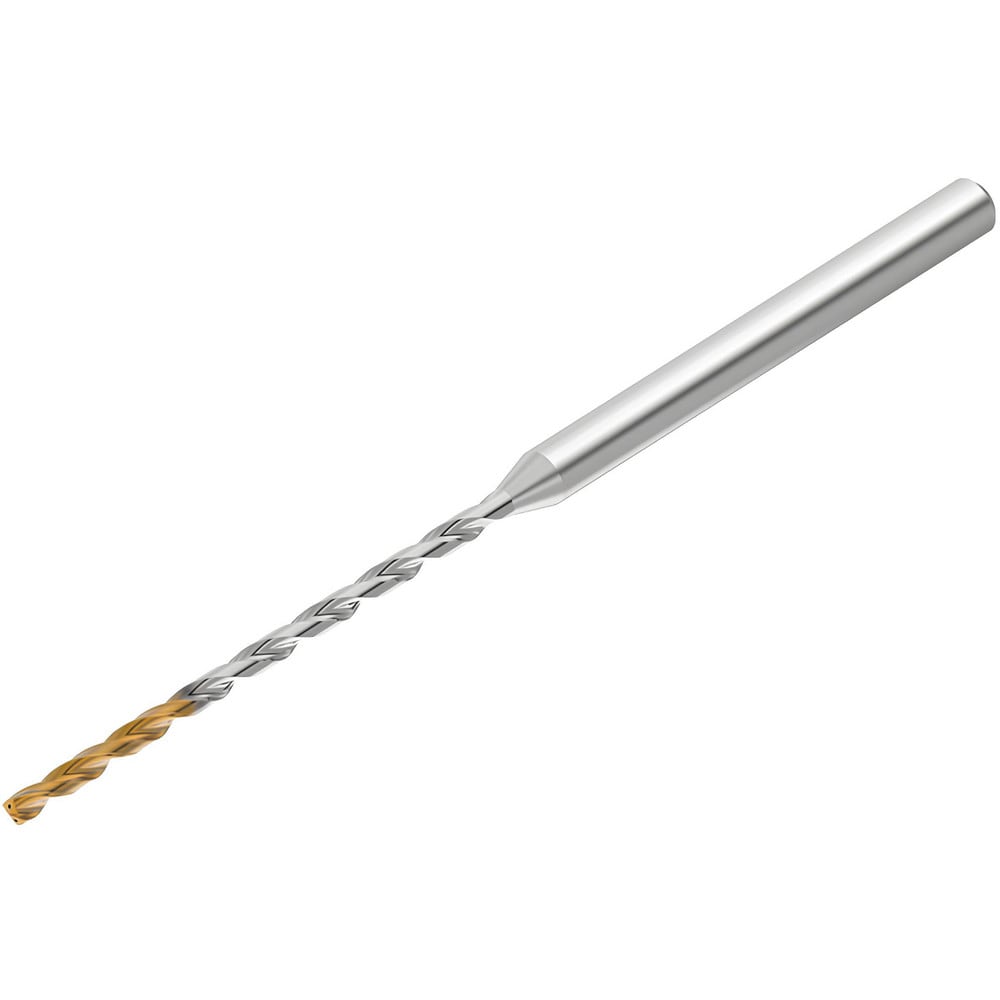

Micro Drill Bit: 2.30 mm Dia, (0.0906"), 139 deg, Solid Carbide
Item #: 67204503
Brand: Kennametal
Model #: 7070809
Product Specifications
| Drill Bit Size (mm) | 2.30 |
| Drill Bit Size (Decimal Inch) | 0.0906 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 53.30 |
| Coating/Finish | TiAlCrN; TiSiN; TiAlCrSiN |
| Coolant Through | Yes |
| Drill Point Angle | 139 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 81.50 |
| Number Of Flutes | 2 |
| Series | Kendrill |
| Overall Length (mm) | 98.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 4.00 |
| Shank Length (mm) | 42.00 |
| Flute By Diameter Ratio | 25xD |
| UNSPSC Code | 23241600 |
| Drill Bit Size (mm) | 2.30 |
| Drill Bit Size (Decimal Inch) | 0.0906 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 53.30 |
| Coating/Finish | TiAlCrN; TiSiN; TiAlCrSiN |
| Coolant Through | Yes |
| Drill Point Angle | 139 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 81.50 |
| Number Of Flutes | 2 |
| Series | Kendrill |
| Overall Length (mm) | 98.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 4.00 |
| Shank Length (mm) | 42.00 |
| Flute By Diameter Ratio | 25xD |
| UNSPSC Code | 23241600 |
| MSC Part # | 67204503 |
| Mfr Part # | 7070809 |
| Country of Origin Country of Origin is subject to change | Japan |
