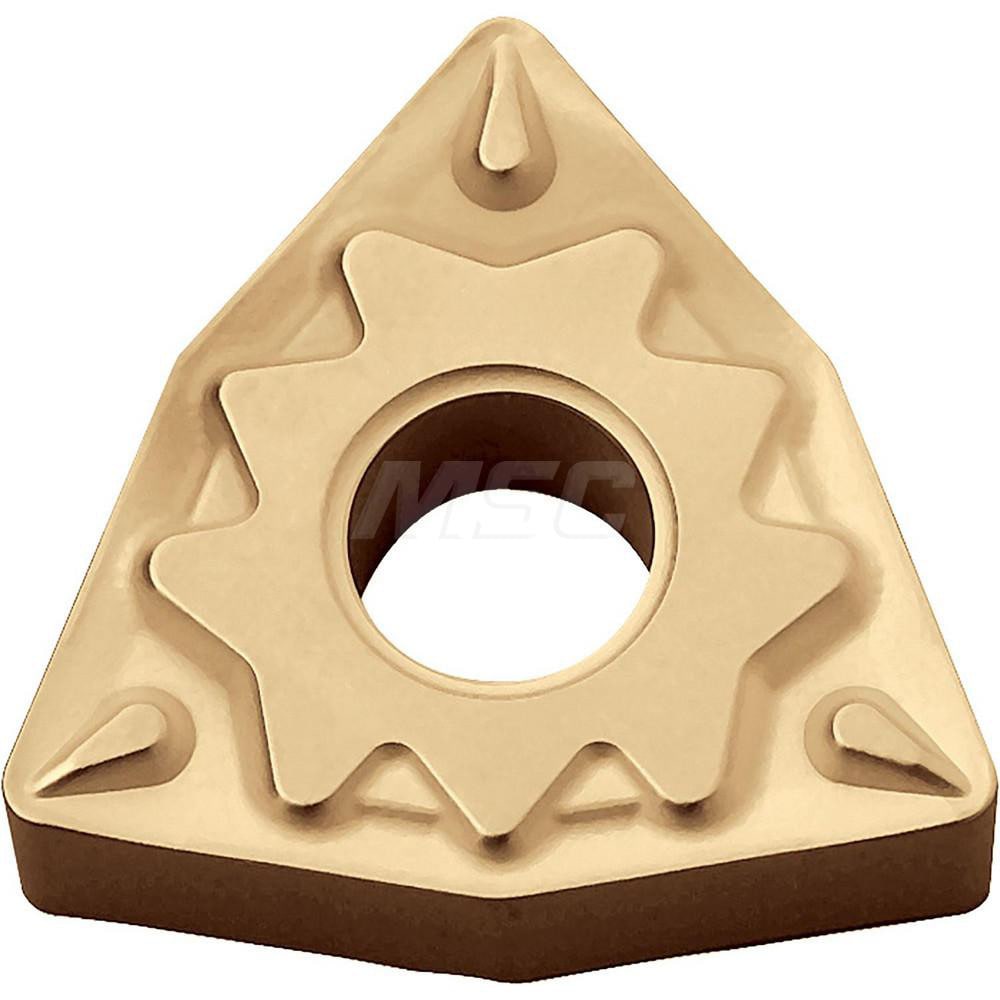

Turning Insert: WNMG332HQ CA5525, Carbide
Item #: 18259994
Brand: Kyocera
Model #: TJR08281
Product Specifications
| ANSI Insert Code | WNMG332 |
| ISO Insert Code | WNMG060408 |
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80 |
| Manufacturer Grade | CA5525 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.1707 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5120 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | WNMG060408HQ |
| Manufacturers Catalog Number | TJR08281 |
| Material Grade | P30; P10; P20 |
| Coating Classification | CVD |
| Chip Breaker | HQ |
| Rake Angle | -15 |
| Cutting Edge Style | Honed |
| Industry Standard Number | WNMG332HQCA5525 |
| Width (Decimal Inch - 4 Decimals) | 0.5120 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Chamfering; Facing; Internal Facing; Boring |
| ANSI Size Code | 332 |
| ISO Size Code | 060408 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 332 |
