CNC Quick-Change Clamping Modules; Series: VERO-S; Actuation Type: Pneumatic; Number of Module Centers: 8; Indexing: No; Unlocking Pressure (lbf/sq in): 87.02
Item #: 05621180
Brand: Schunk
Model #: 1572480
Product Specifications
| Actuation Type | Pneumatic |
| Number of Module Centers | 8 |
| Indexing | No |
| Unlocking Pressure (lbf/sq in) | 87.02 |
| Unlocking Pressure (bar) | 6.00 |
| Repeatability (mm) | 0.0050 |
| Repeatability (Decimal Inch) | 0.000196 |
| EDM Base | No |
| Clamping Force (N) | 16.00 |

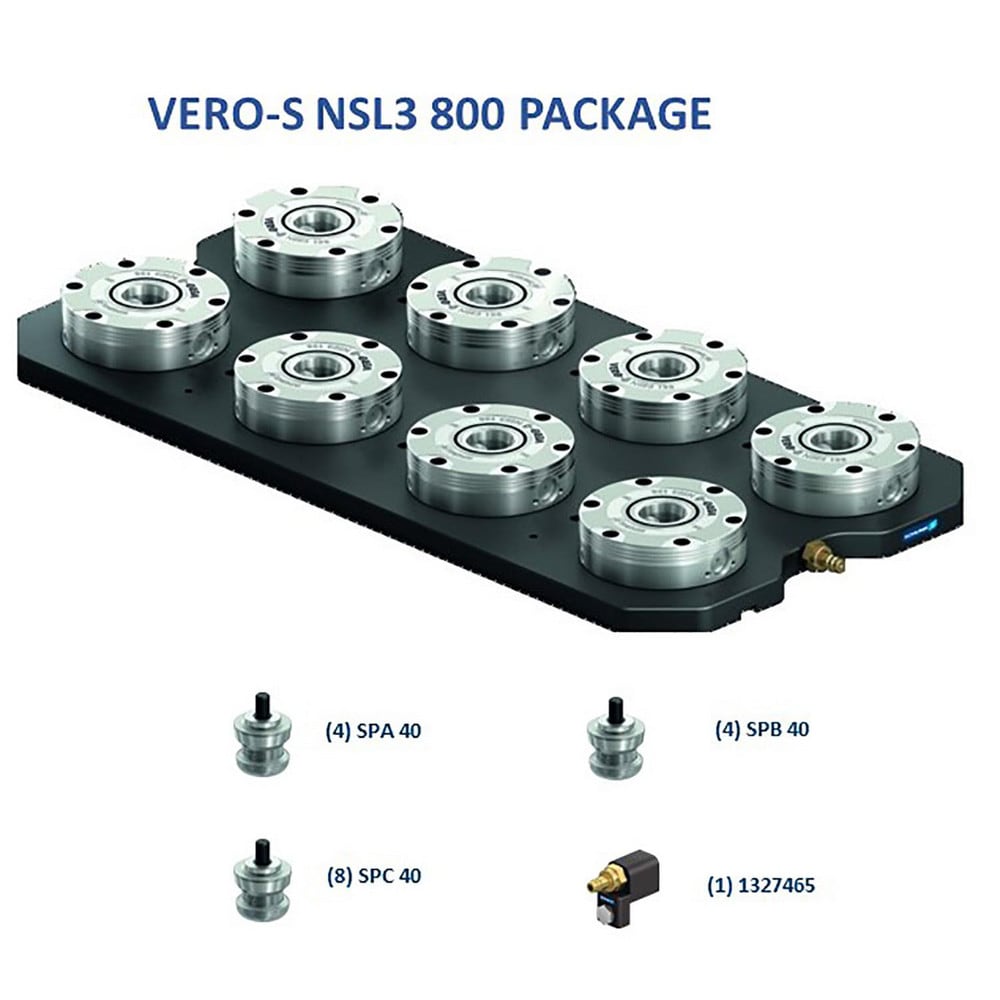

| Additional Information | 8 Module NSL pallet with clamping pins, quick connect & Adaptor Coupler |
| Material | Stainless Steel |
| Series | VERO-S |
| Overall Diameter (Mm - 4 Decimals) | 893.0000 |
| Overall Length (mm) | 799.0000 |
| Overall Width (mm) | 399.0000 |
| UNSPSC Code | 27112100 |
