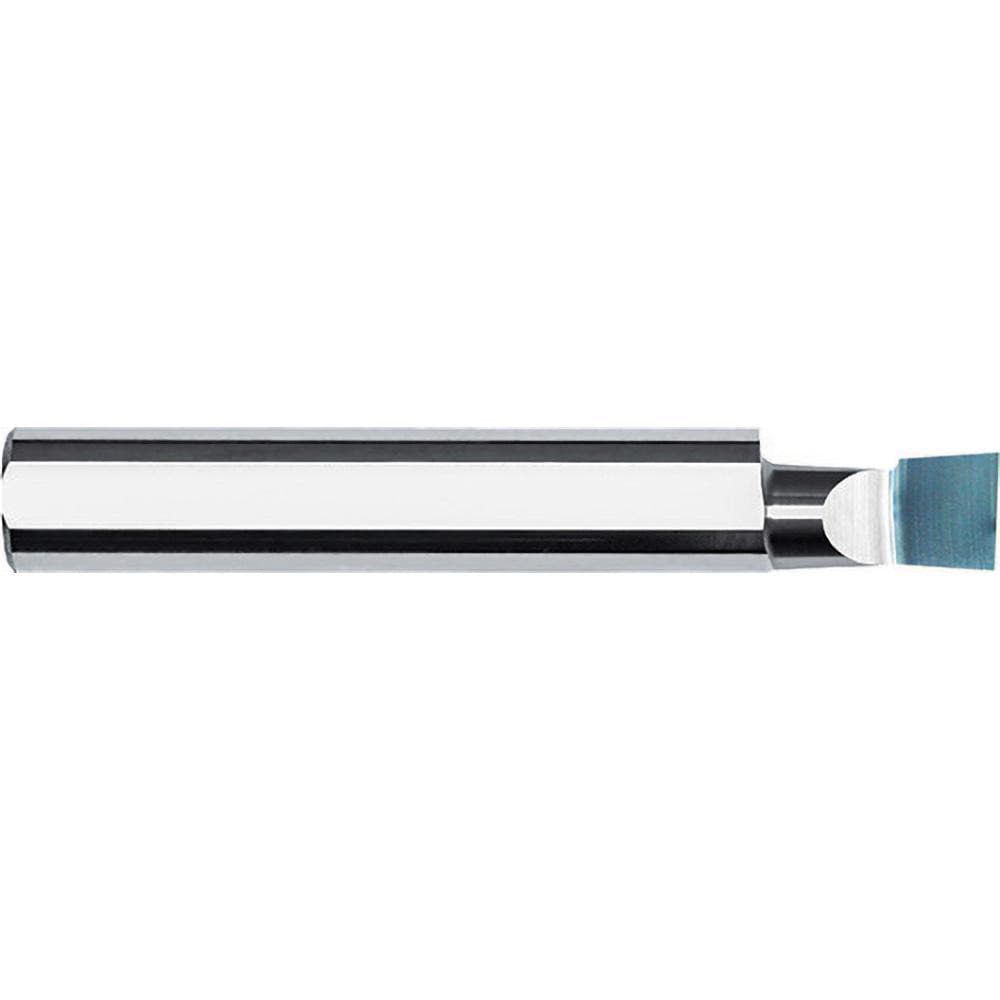

Boring Bar: 0.4900" Min Bore Dia, 1-1/4" Max Bore Depth, Right Hand, 1/2" Shank Dia, Micrograin Solid Carbide
Item #: 09407354
Brand: Internal Tool
Model #: 10-1590-R-T
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.4900 |
| Material | Carbide |
| Material Grade | Micrograin |
| Maximum Bore Depth (Decimal Inch) | 1.2500 |
| Projection (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 3 |
| Corner Radius (Decimal Inch) | 0.0060 |
| Bar End Angle | 1.5 |
| Series | 10 |
| Maximum Bore Depth (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 3.0000 |
| Primary Workpiece Material | Universal |
| Relief Angle | 4 |
| UNSPSC Code | 23241601 |
