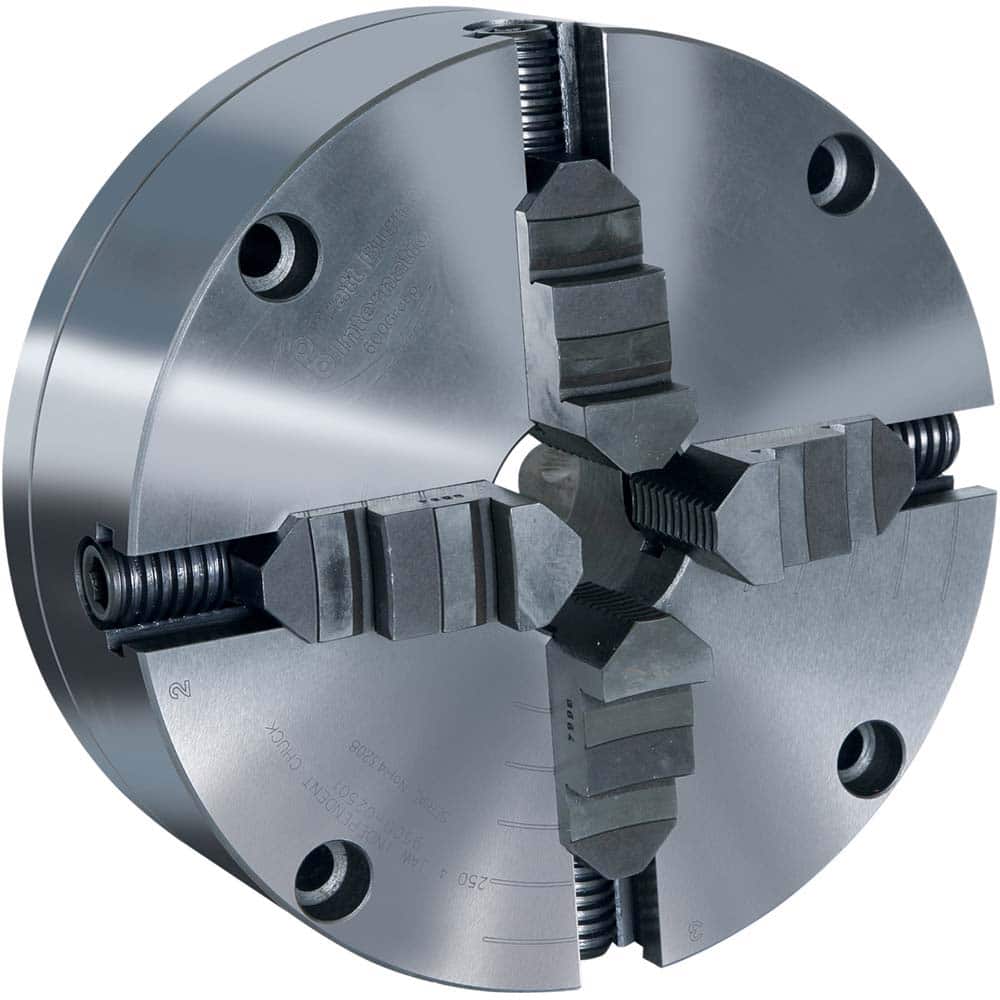

Pratt Burnerd America - Manual Lathe Chucks; Chuck Type: Independent ; Nominal Chuck Size: 16 ; Number of Jaws: 4 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 4.0500 ; Body Material: Cast Iron (Semi-Steel)
Item #: 51314540
Brand: Pratt Burnerd America
Model #: 1614500
Product Specifications
Manual Lathe Chucks; Chuck Type: Independent ; Nominal Chuck Size: 16 ; Number of Jaws: 4 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 4.0500 ; Body Material: Cast Iron (Semi-Steel)
| Chuck Type | Independent |
| Nominal Chuck Size | 16 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 4.0500 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (Decimal Inch) | 15.7400 |
| Minimum Jaw Capacity (Inch) | 0.7500; 3/4 |
| Minimum Jaw Capacity (Decimal Inch) | 0.7500; 3/4 |
| Maximum Jaw Capacity (Inch) | 14.0000; 14 |
| Maximum Jaw Capacity (Decimal Inch) | 14.0000; 14 |
| Series | 145 |
| Jaw Height (Decimal Inch) | 1.4700 |
| Adjustable | Yes |
| Body Length (Decimal Inch) | 3.5800 |
| Includes | Hardened Operating Screws; Mounting Plate |
