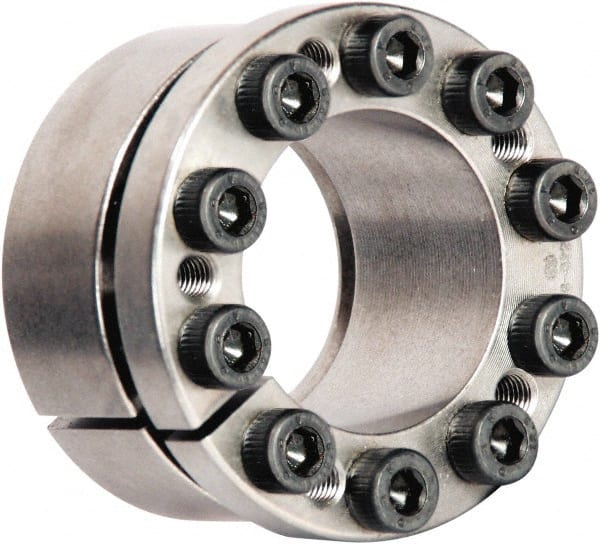

Climax Metal Products - M5 Thread, 1-1/8" Bore Diam, 1-7/8" OD, Shaft Locking Device - 9 Screws, 7,916 Lb Axial Load, 2" OAW, 0.669" Thrust Ring Width, 4,453 Ft/Lb Max Torque
Item #: 51320786
Brand: Climax Metal Products
Model #: C193E-112
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M5 |
| Bore Diameter (Decimal Inch) | 1.1250 |
| Outside Diameter (Decimal Inch) | 1.8750 |
| Thrust Ring Width (Decimal Inch) | 0.669 |
| Overall Width (Decimal Inch) | 2.0000 |
| Axial Load Lbs (Pounds) | 7916 |
| Maximum Torque (Ft/Lb) | 4453 |
| Number of Screws | 9.000 |
| Contact Pressure on Hub (psi) | 16740.000 |
| Contact Pressure on Shaft (psi) | 27900.000 |
| Screw Seating Torque (In/Lb) | 1068.000 |
