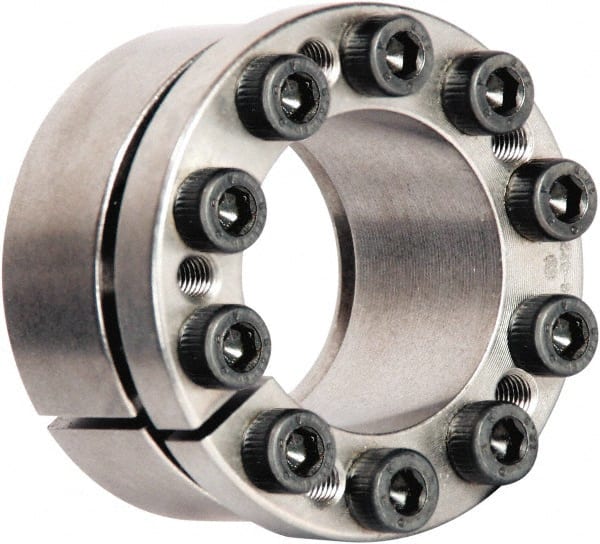

Climax Metal Products - M5 Thread, 1-3/16" Bore Diam, 1-15/16" OD, Shaft Locking Device - 10 Screws, 8,796 Lb Axial Load, 2-1/16" OAW, 0.669" Thrust Ring Width, 5,222 Ft/Lb Max Torque
Item #: 51320794
Brand: Climax Metal Products
Model #: C193E-118
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M5 |
| Bore Diameter (Decimal Inch) | 1.1875 |
| Outside Diameter (Decimal Inch) | 1.9375 |
| Thrust Ring Width (Decimal Inch) | 0.669 |
| Overall Width (Decimal Inch) | 2.0625 |
| Axial Load Lbs (Pounds) | 8796 |
| Maximum Torque (Ft/Lb) | 5222 |
| Number of Screws | 10.000 |
| Contact Pressure on Hub (psi) | 18000.000 |
| Contact Pressure on Shaft (psi) | 29368.000 |
| Screw Seating Torque (In/Lb) | 1068.000 |
