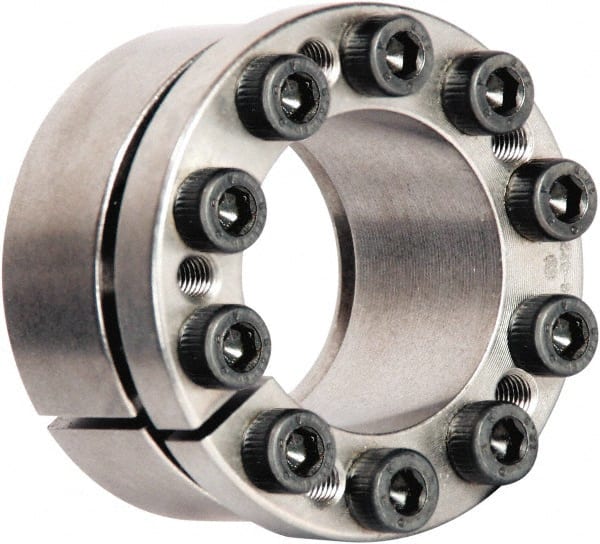

Climax Metal Products - M5 Thread, 1-1/4" Bore Diam, 2" OD, Shaft Locking Device - 10 Screws, 8,796 Lb Axial Load, 2-1/8" OAW, 0.669" Thrust Ring Width, 5,497 Ft/Lb Max Torque
Item #: 51320802
Brand: Climax Metal Products
Model #: C193E-125
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M5 |
| Bore Diameter (Decimal Inch) | 1.2500 |
| Outside Diameter (Decimal Inch) | 2.0000 |
| Thrust Ring Width (Decimal Inch) | 0.669 |
| Overall Width (Decimal Inch) | 2.1250 |
| Axial Load Lbs (Pounds) | 8796 |
| Maximum Torque (Ft/Lb) | 5497 |
| Number of Screws | 10.000 |
| Contact Pressure on Hub (psi) | 17437.000 |
| Contact Pressure on Shaft (psi) | 27900.000 |
| Screw Seating Torque (In/Lb) | 1068.000 |
