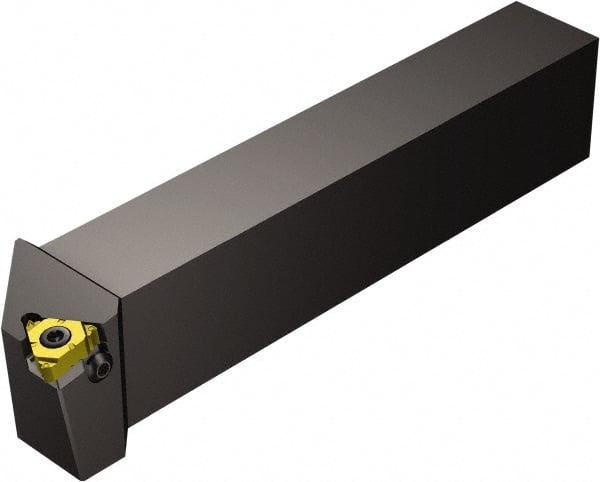

Sandvik Coromant - External Thread, Right Hand Cut, 1" Shank Width x 1" Shank Height Indexable Threading Toolholder - 6" OAL, 266RG-16 Insert Compatibility, 266RFG Toolholder, Series CoroThread 266
Item #: 51358513
Brand: Sandvik Coromant
Model #: 5757853
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Insert Compatibility | 266RG-16 |
| Series | CoroThread 266 |
| Toolholder Style | 266RFG |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Inch) | 6 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Center to Cutting Edge (mm) | 31.75 |
| Center to Cutting Edge (Decimal Inch) | 1.2500 |
| Shank Length (Inch) | 6 |
| Shank Length (Decimal Inch) | 6.0000 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
