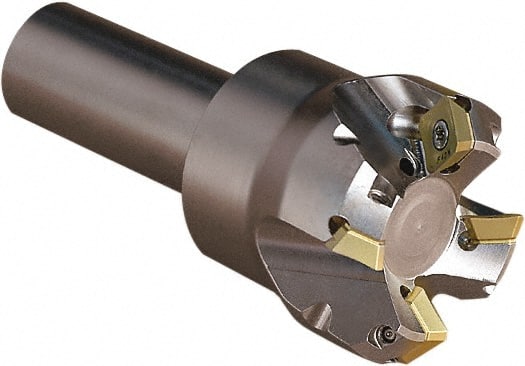

Seco - 45° Lead Angle, 1.654" Max Cut Diam, 4.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 4 Inserts, 3.543" Overall Length, Through Coolant
Item #: 51365369
Brand: Seco
Model #: 04088
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 42.00 |
| Cutting Diameter (Decimal Inch) | 1.6535 |
| Maximum Cutting Diameter (Decimal Inch) | 1.654 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | .787 |
| Lead Angle | 45 |
| Overall Length (Decimal Inch) | 3.5430 |
| Overall Height (Decimal Inch) | 3.5433 |
| Series | QuattroMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Maximum Depth of Cut (mm) | 4.50 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Maximum RPM | 19800 |
