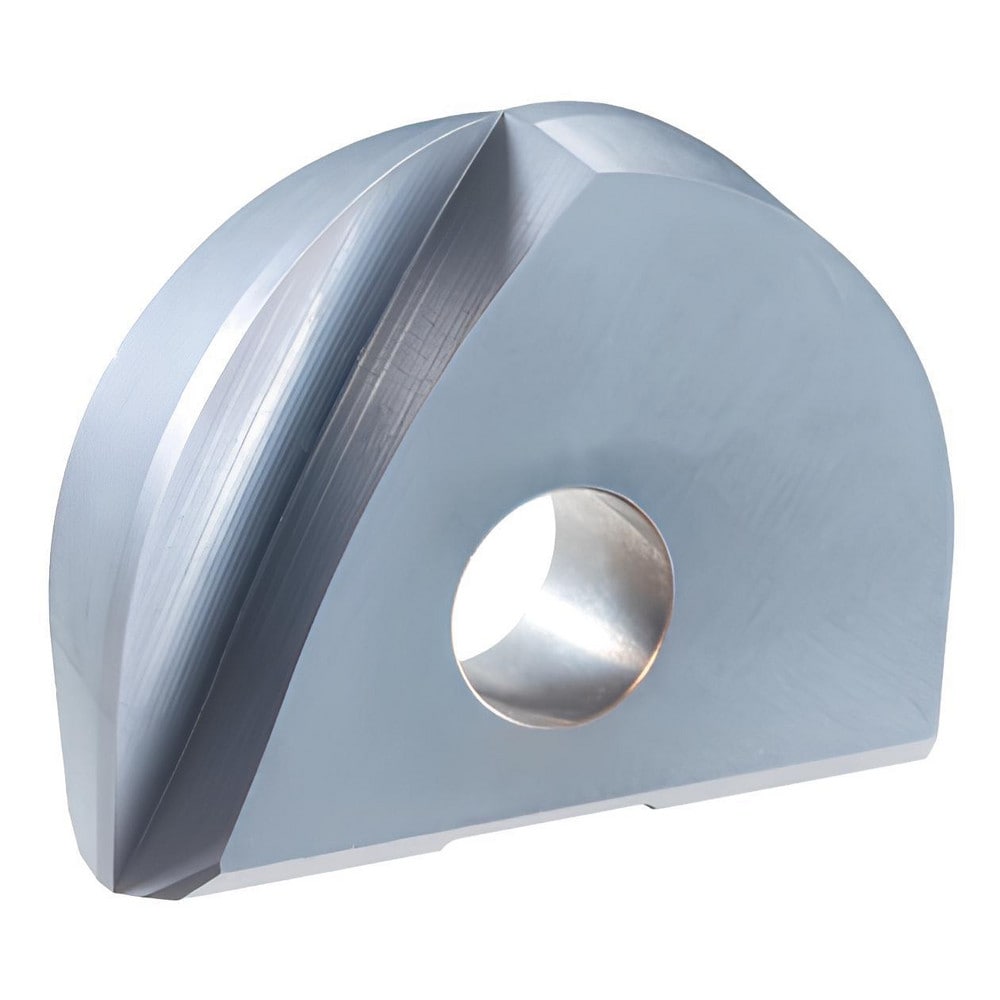

Milling Insert: PFB200-SP XP3225, Solid Carbide
Item #: 55808778
Brand: OSG
Model #: 7820034
Product Specifications
| Insert Style | PFB |
| Insert Size | 20 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose |
| Manufacturer Grade | XP3225 |
| Corner Radius (mm) | 10.00 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1969 |
| Thickness (mm) | 5.00 |
| Coating/Finish | Cr |
| Insert Size Code | 200 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Series | 78PFB |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M; N |
| Secondary Workpiece Material | Hard Material; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Ansi Code | PFB200-SP |
| Iso Code | PFB200-SP |
| Standards | ISO; ANSI |
| Convex Radius (Decimal Inch) | 0.3937 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 7820034 |
| Cutter Series Compatibility | 78PFB |
| Chip Breaker | SP |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 180 |
| Length (mm) | 15.00 |
| Width (Decimal Inch - 4 Decimals) | 0.7874 |
| Width (mm - 2 Decimals) | 20.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5906 |
| Insert Style | PFB |
| Insert Size | 20 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose |
| Manufacturer Grade | XP3225 |
| Corner Radius (mm) | 10.00 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1969 |
| Thickness (mm) | 5.00 |
| Coating/Finish | Cr |
| Insert Size Code | 200 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Series | 78PFB |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M; N |
| Secondary Workpiece Material | Hard Material; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Ansi Code | PFB200-SP |
| Iso Code | PFB200-SP |
| Standards | ISO; ANSI |
| Convex Radius (Decimal Inch) | 0.3937 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 7820034 |
| Cutter Series Compatibility | 78PFB |
| Chip Breaker | SP |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 180 |
| Length (mm) | 15.00 |
| Width (Decimal Inch - 4 Decimals) | 0.7874 |
| Width (mm - 2 Decimals) | 20.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5906 |
| MSC Part # | 55808778 |
| Mfr Part # | 7820034 |
| Country of Origin Country of Origin is subject to change | Japan |
