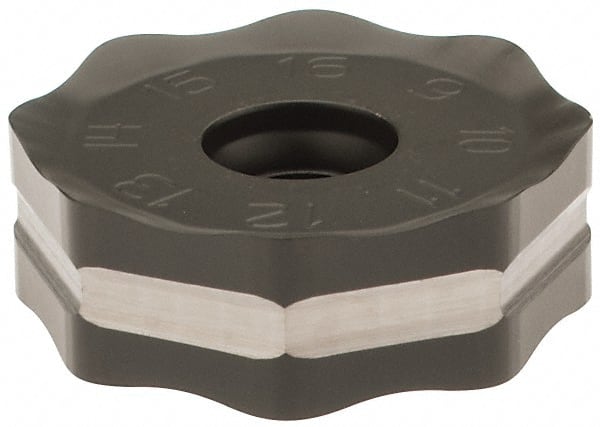

Seco - ONMU090520 M12 Grade MP2500 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.228" Thick, 0.866" Inscribed Circle
Item #: 51477834
Brand: Seco
Model #: 65459
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 090520 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | MP2500 |
| Coating | TiCN/Al2O3 |
| Width (Decimal Inch) | 0.8660 |
| Inscribed Circle (Decimal Inch) | 0.8660 |
| Thickness (Decimal Inch) | 0.2280 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Shape | Octagon |
| Chipbreaker | M12 |
| ISO Number | ONMU090520ANTN-M12 |
