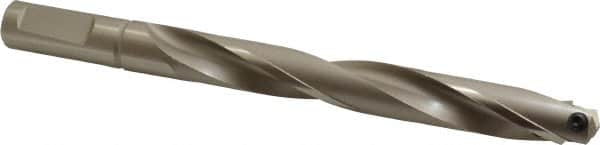

Guhring - 20 to 20.49mm Diam, 147.3mm Max Depth, 3/4" Shank Diam, 178mm Flute, 230mm OAL, Replaceable Tip Drill - HT 800 WP Insert, Series 4109
Item #: 51484640
Brand: Guhring
Model #: 9041090200050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4109 |
| Minimum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (mm) | 20.49 |
| Maximum Drill Depth (Decimal Inch) | 5.7992 |
| Maximum Drill Depth (mm) | 147.30 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | HT 800 WP |
| Through Coolant | Through Coolant |
| Flute Length (mm) | 178.00 |
| Flute Length (Decimal Inch) | 7.0079 |
| Overall Length (mm) | 230.00 |
| Overall Length (Decimal Inch) | 9.0551 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
