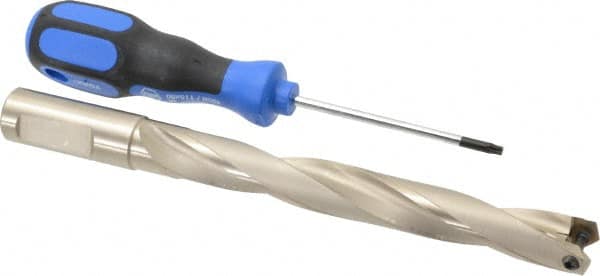

Guhring - 19 to 19.49mm Diam, 140.1mm Max Depth, 20mm Shank Diam, 169mm Flute, 221mm OAL, Replaceable Tip Drill - HT 800 WP Insert, Series 4109
Item #: 51484681
Brand: Guhring
Model #: 9041090190000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4109 |
| Minimum Drill Diameter (mm) | 19.00 |
| Maximum Drill Diameter (mm) | 19.49 |
| Maximum Drill Depth (Decimal Inch) | 5.5157 |
| Maximum Drill Depth (mm) | 140.10 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | HT 800 WP |
| Through Coolant | Through Coolant |
| Flute Length (mm) | 169.00 |
| Flute Length (Decimal Inch) | 6.6535 |
| Overall Length (mm) | 221.00 |
| Overall Length (Decimal Inch) | 8.7008 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
