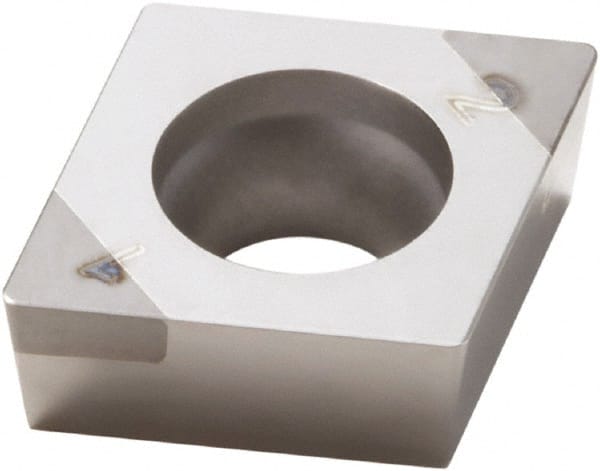

Seco - CCGW32.51 Grade CBN200 PCBN Turning Insert - Uncoated, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 51505014
Brand: Seco
Model #: 44147
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGW |
| Insert Size | 32.51 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | CBN200 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Series | Secomax |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Insert Holding Method | Screw |
| Shape | Diamond |
