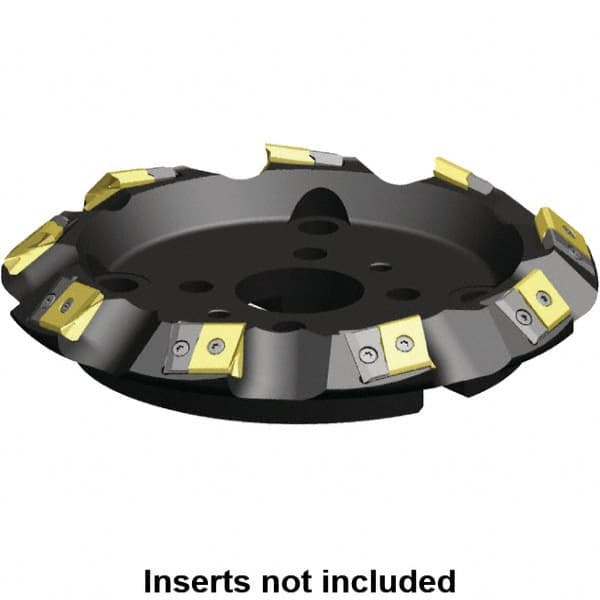

Kennametal - 5" Cut Diam, 1-1/2" Arbor Hole, 17.15mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 6 Inserts, LN.U 2410... Insert, Right Hand Cut, 6 Flutes, Series MEGA45
Item #: 51511756
Brand: Kennametal
Model #: 4032274
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (mm) | 162.33 |
| Cutting Diameter (Decimal Inch) | 6.3910 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.3750 |
| Overall Height (mm) | 60.33 |
| Insert Compatibility | LN.U 2410... |
| Series | MEGA45 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 17.15 |
| Maximum Depth of Cut (Decimal Inch) | 0.6750 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | MEGA |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 3.8100 |
| Hub Diameter (mm) | 96.77 |
| Maximum Body Diameter (Decimal Inch) | 6.7000 |
| Maximum RPM | 12520 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | LN.U 241012ANSR |
