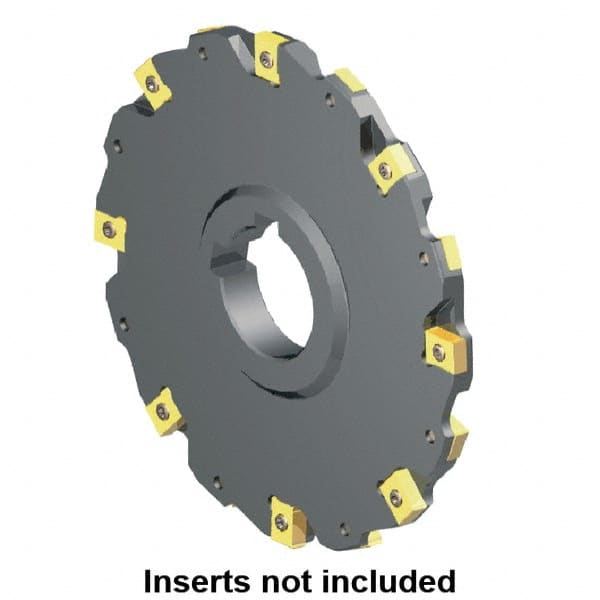

Kennametal - Arbor Hole Connection, 5/16" Cutting Width, 1-3/4" Depth of Cut, 6" Cutter Diam, 1-1/2" Hole Diam, 8 Tooth Indexable Slotting Cutter - 90° LN Toolholder, LNE 1245... Insert
Item #: 51586030
Brand: Kennametal
Model #: 1025965
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 7.94 |
| Cutting Width (Decimal Inch) | 0.3125 |
| Cutting Width (Inch) | 5/16 |
| Maximum Depth of Cut (mm) | 44.45 |
| Maximum Depth of Cut (Decimal Inch) | 1.7500 |
| Cutter Diameter (mm) | 152.40 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Cutter Diameter (Inch) | 6 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 8 |
| Toolholder Style | 90 LN |
| Series | LN |
| Insert Style | LNE 1245... |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Maximum RPM | 6000 |
| Minimum Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Cutting Width (Decimal Inch) | 0.3510 |
| Maximum Cutting Width (mm) | 8.92 |
| Hub Diameter (mm) | 57.15 |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Cutter Body Width (mm) | 12.70 |
| Cutter Body Width (Decimal Inch) | 0.5000 |
