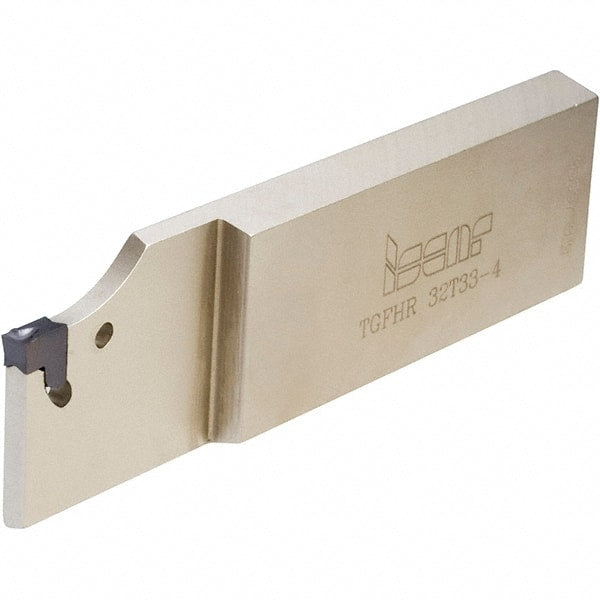

Iscar - 0.071 to 3/32" Groove Width, TGFH Indexable Grooving Blade - 0.094 Inch Max Groove Width,
Item #: 51640563
Brand: Iscar
Model #: 2302231
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Groove Width (Decimal Inch) | 0.0710 |
| Blade Style | TGFH |
| Maximum Workpiece Diameter (Decimal Inch) | 1.6500 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (Decimal Inch) | 0.3110 |
| Maximum Groove Width (Decimal Inch) | 0.0940 |
| Overall Length (Decimal Inch) | 4.3500 |
| Manufacturers Catalog Number | TGFHR 32T22-2 |
| Cutting Height (Decimal Inch) | 0.9760 |
| MSC/Manufacturer Number | 2302231 |
