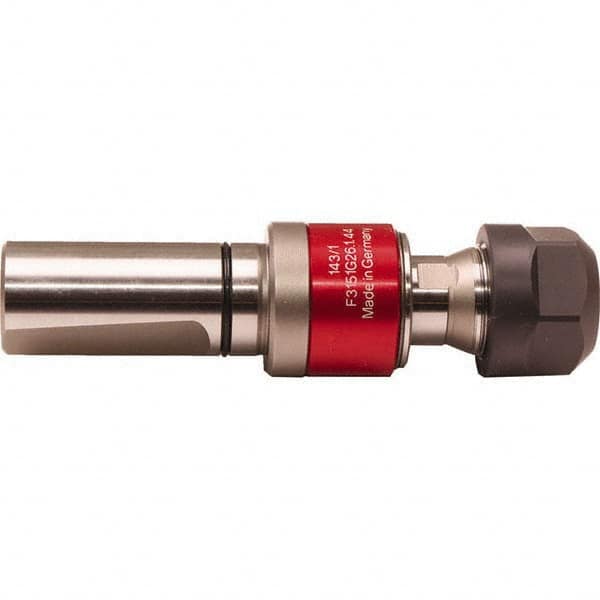

Emuge - 25mm Straight Shank Diam Tension & Compression Tapping Chuck - M4 Min Tap Capacity, 73mm Projection, Through Coolant
Item #: 51747558
Brand: Emuge
Model #: F3151G26.1.44
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Minimum Tap Capacity (mm) | M4 |
| Projection (Decimal Inch) | 2.8740 |
| Projection (mm) | 73.00 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 4.50 |
| Minimum Collet Capacity (Decimal Inch) | 0.1772 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Maximum Collet Capacity (mm) | 10.00 |
| Collet System | ER Tap |
| Holder Series | Softsynchro 1 |
| Nose Diameter (mm) | 34.00 |
| Nose Diameter (Decimal Inch) | 1.3386 |
| Tap Depth (mm) | 29.00 |
| Tension (mm) | 0.50 |
| Compression (Decimal Inch) | 0.0197 |
| Compression (mm) | 0.50 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Through Coolant | Yes |
