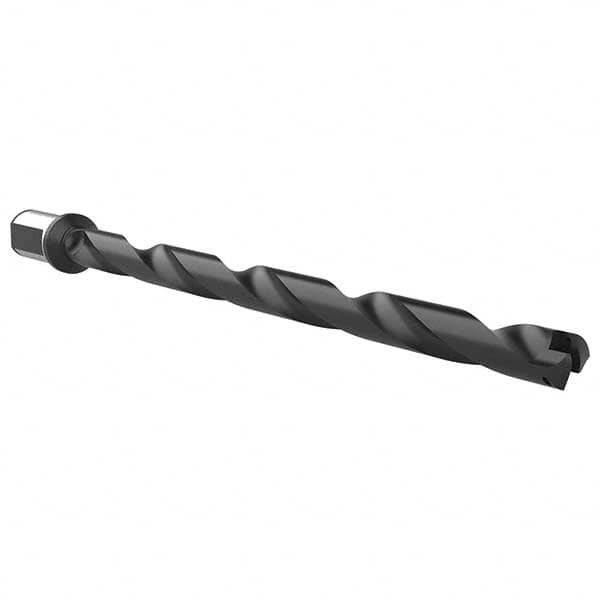

Allied Machine and Engineering - 24.41mm to 35.05mm Diam 410mm Max Depth Helical Flute Spade Drill
Item #: 46621140
Brand: Allied Machine and Engineering
Model #: 26020H-32FM
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 2 |
| Minimum Drill Diameter (mm) | 24.41 |
| Minimum Drill Diameter (Decimal Inch) | 0.9610 |
| Maximum Drill Diameter (mm) | 35.05 |
| Maximum Drill Diameter (Decimal Inch) | 1.3800 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 32.00 |
| Spade Drill Length | Long Length |
| Overall Length (mm) | 512.90 |
| Maximum Drill Depth (mm) | 410.00 |
| Flute Type | Helical Flute |
| Body Length (mm) | 452.90 |
| Shank Length (mm) | 60.00 |
| Series Code/Seat Size | 2 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
