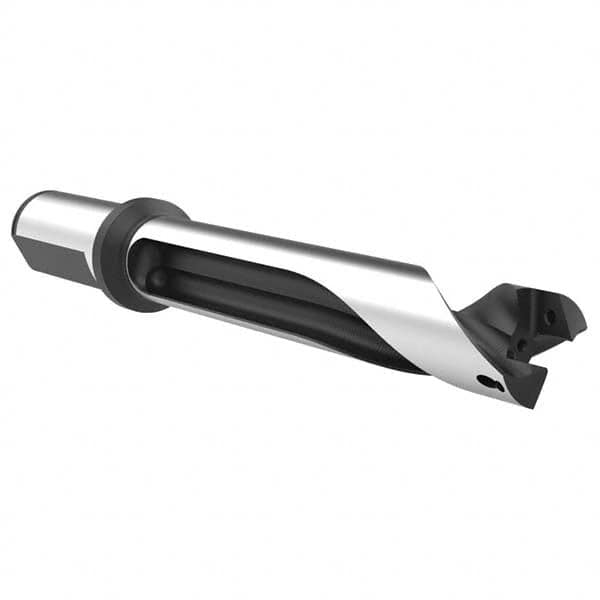

Allied Machine and Engineering - 24mm to 26mm Diam 3xD 78mm Max Depth Straight Flute Spade Drill
Item #: 57927089
Brand: Allied Machine and Engineering
Model #: ST03240-25FM
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 24 |
| Minimum Drill Diameter (mm) | 24.00 |
| Maximum Drill Diameter (mm) | 26.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 25.00 |
| Overall Length (mm) | 169.80 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 78.00 |
| Flute Type | Straight Flute |
| Body Length (mm) | 113.80 |
| Shank Length (mm) | 56.00 |
| Series Code/Seat Size | 24 |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
