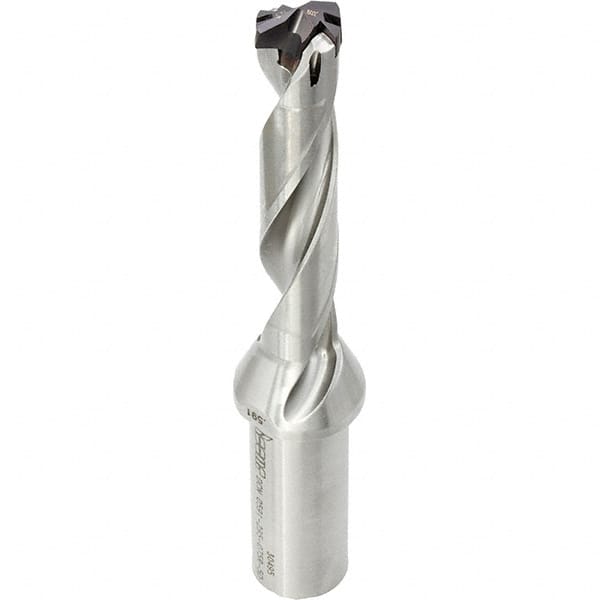

Iscar - 1.26 to 1.295" Diam, 8xD, 10.31" Max Drill Depth, 1-1/4" Shank Diam, 14.43" OAL, Replaceable Tip Drill - HCP-IQ, ICK, ICM, ICP Insert, 32 Seat Size, DCN Toolholder, Series SumoCham
Item #: 52017928
Brand: Iscar
Model #: 3203180
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 1.2600 |
| Maximum Drill Diameter (Decimal Inch) | 1.2950 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 10.3100 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 32 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (Decimal Inch) | 0.2290 |
| Flute Length (Decimal Inch) | 10.3100 |
| Body Length (Decimal Inch) | 12.0700 |
| Overall Length (Decimal Inch) | 14.4300 |
| Shank Length (Decimal Inch) | 2.3600 |
