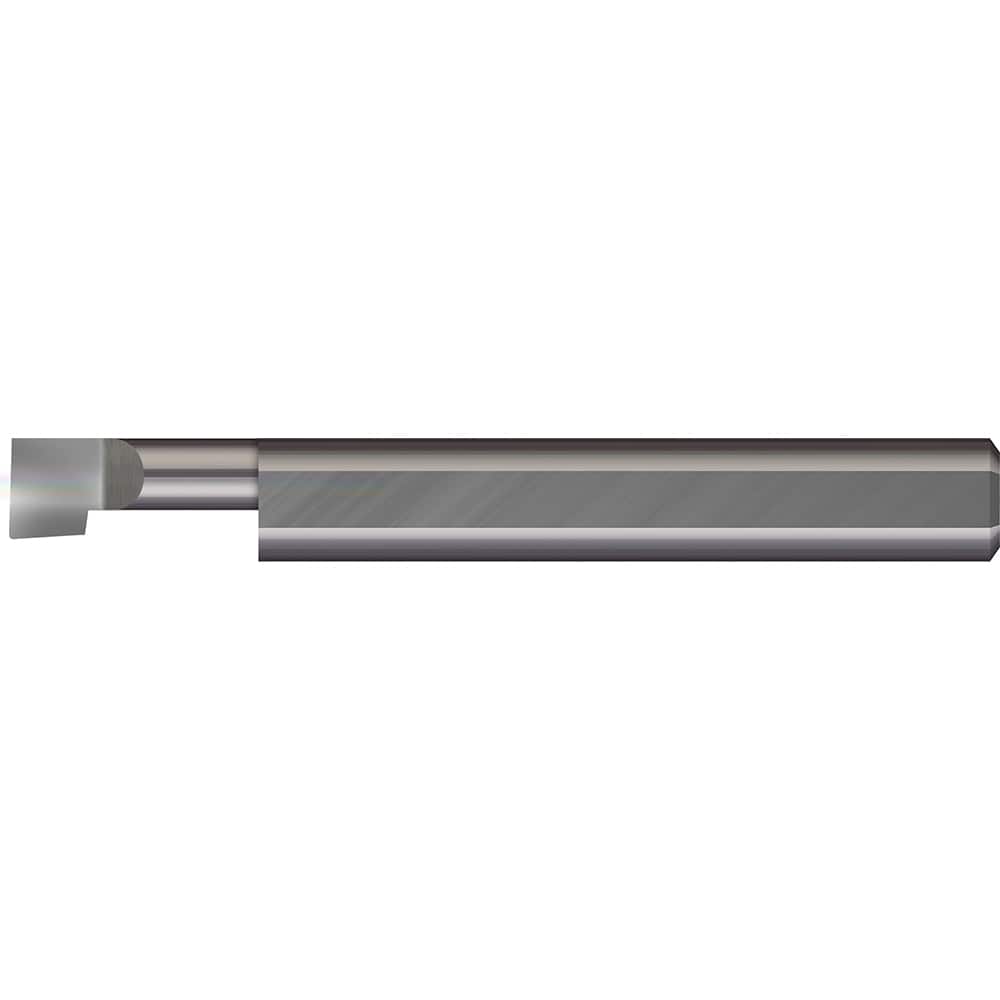

Boring Bar: 0.29″ Min Bore, 1/2″ Max Depth, Right Hand Cut, Solid Carbide 5/16″ Shank Dia, 2-1/2″ OAL, 0.006″ Corner Radius
Item #: 52046489
Brand: Micro 100
Model #: BB-290500
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.2900 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.5000 |
| Shank Diameter (Decimal Inch) | 5/16 |
| Overall Length (Inch) | 2-1/2 |
| Finish Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.0060 |
| Corner Radius | 0.006 in |
| Maximum Bore Depth (Inch) | 1/2 |
| Offset (Decimal Inch) | 0.1338 |
| Overall Length (Decimal Inch) | 2.5000 |
