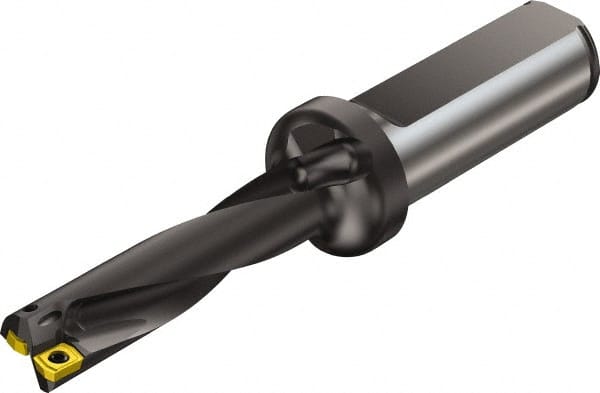

Sandvik Coromant - 5.15" Max Drill Depth, 4xD, 1-1/4" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 52060563
Brand: Sandvik Coromant
Model #: 5723268
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-04 |
| Drill Diameter (mm) | 31.75 |
| Drill Diameter (Inch) | 1-1/4 |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Depth (Decimal Inch) | 5.1500 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 3.5 |
| Insert Size (Decimal Inch) | 0.1378 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.3209 |
| Maximum Drill Diameter (mm) | 31.75 |
| Overall Length/Projection (mm) | 224.48 |
| Overall Length/Projection (Decimal Inch) | 8.8379 |
| Insert Compatibility (Outside or Peripheral) | 06P |
| Flute Length (mm) | 149.46 |
| Flute Length (Decimal Inch) | 5.8843 |
| Body Length (Decimal Inch) | 5.1500 |
| Body Length (mm) | 130.81 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Radius (Decimal Inch) | 0.6250 |
| Series | CoroDrill 880 |
