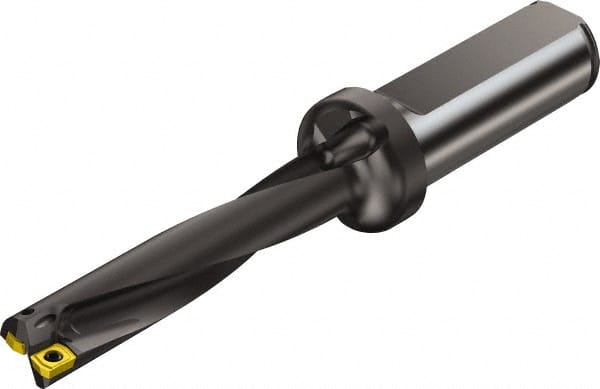

Sandvik Coromant - 4.2061" Max Drill Depth, 5xD, 20.6248mm Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 52060977
Brand: Sandvik Coromant
Model #: 5723643
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-05 |
| Drill Diameter (mm) | 20.62 |
| Drill Diameter (Decimal Inch) | 0.8120 |
| Maximum Drill Depth (Decimal Inch) | 4.2061 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 2.8 |
| Insert Size (Decimal Inch) | 0.1102 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Diameter (mm) | 20.62 |
| Overall Length/Projection (mm) | 179.83 |
| Overall Length/Projection (Decimal Inch) | 7.0797 |
| Insert Compatibility (Outside or Peripheral) | 04P |
| Flute Length (mm) | 118.81 |
| Flute Length (Decimal Inch) | 4.6774 |
| Body Length (Decimal Inch) | 4.2060 |
| Body Length (mm) | 106.83 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Radius (Decimal Inch) | 0.4060 |
| Series | CoroDrill 880 |
