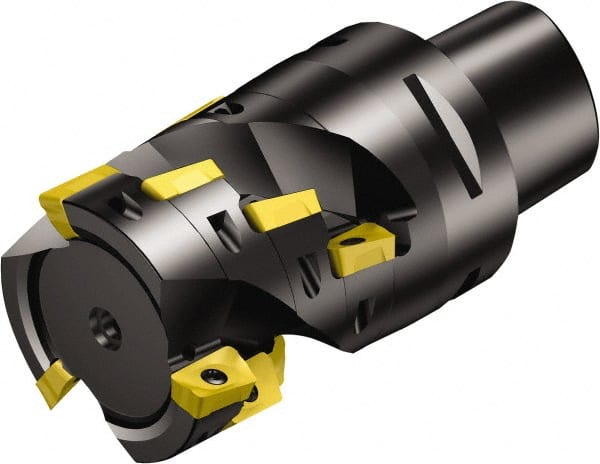

Sandvik Coromant - 2" Cut Diam, 99.822mm Max Depth of Cut, 136.754mm OAL, Indexable Square Shoulder Ramping End Mill - R390-18.. Inserts, C6 Modular Connection, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 52064755
Brand: Sandvik Coromant
Model #: 5740074
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Overall Length/Projection (mm) | 136.75 |
| Overall Length/Projection (Decimal Inch) | 5.3840 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 99.82 |
| Maximum Depth of Cut (Decimal Inch) | 3.9300 |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| End Mill Type | Ramping End Mill |
| Cutter Style | CoroMill 390 |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Inch) | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Head Length (mm) | 109.73 |
| Head Length (Decimal Inch) | 4.3200 |
| Weldon Flat | No |
| Insert Compatibility | R390-18.. |
| Shank Length (Decimal Inch) | 1.0640 |
| Maximum RPM | 7800 |
| Toolholder Material | Steel |
