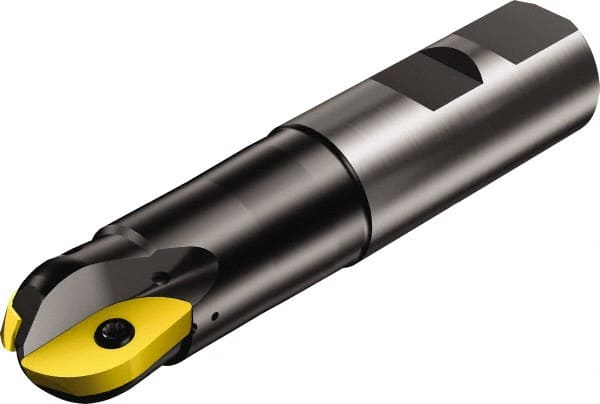

Sandvik Coromant - 3/4" Cut Diam, 16.9926mm Max Depth of Cut, 1" Shank Diam, 108.74mm OAL, Indexable Ball Nose End Mill - 33mm Head Length, Weldon Flat Shank, RA216..Mxx Toolholder, RA216-19T3 Insert
Item #: 52064813
Brand: Sandvik Coromant
Model #: 5739064
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (mm) | 16.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.6690 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | RA216-19T3 |
| Toolholder Style | RA216..Mxx |
| Series | CoroMill 216 |
| Overall Length (mm) | 108.74 |
| Overall Length (Decimal Inch) | 4.2811 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 33.00 |
| Head Length (Decimal Inch) | 1.2992 |
| Number of Side Inserts Used on Toolholder | 0 |
| Maximum RPM | 24000 |
| Projection (Inch) | 2 |
| Projection (Decimal Inch) | 2.0000 |
