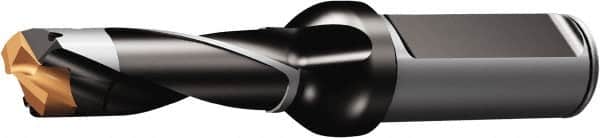

Sandvik Coromant - 22 to 22.99mm Diam, 3xD, 72.45mm Max Depth, 1" Shank Diam, 93.53mm Flute, 153mm OAL, Replaceable Tip Drill - 870-2290-22-PM Insert, 22 Seat Size, 870...LX-3 Toolholder, Series CoroDrill 870
Item #: 52064888
Brand: Sandvik Coromant
Model #: 6239450
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 22.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Diameter (mm) | 22.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.9051 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.8524 |
| Maximum Drill Depth (mm) | 72.45 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | 870-2290-22-PM |
| Insert Seat Size | 22 |
| Toolholder Style | 870...LX-3 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Tip Length (mm) | 3.47 |
| Tip Length (Decimal Inch) | 0.1366 |
| Flute Length (mm) | 93.53 |
| Flute Length (Decimal Inch) | 3.6823 |
| Body Length (mm) | 76.00 |
| Body Length (Decimal Inch) | 2.9921 |
| Overall Length (mm) | 153.00 |
| Overall Length (Decimal Inch) | 6.0236 |
| Toolholder Material | Steel |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
