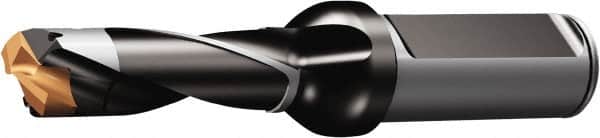

Sandvik Coromant - 16 to 16.99mm Diam, 3xD, 53.56mm Max Depth, 3/4" Shank Diam, 69.42mm Flute, 122mm OAL, Replaceable Tip Drill - 870-1690-16-PM Insert, 16 Seat Size, 870...LX-3 Toolholder, Series CoroDrill 870
Item #: 52064896
Brand: Sandvik Coromant
Model #: 6035701
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6689 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.1087 |
| Maximum Drill Depth (mm) | 53.56 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.75 |
| Insert Style | 870-1690-16-PM |
| Insert Seat Size | 16 |
| Toolholder Style | 870...LX-3 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Tip Length (mm) | 2.58 |
| Tip Length (Decimal Inch) | 0.1016 |
| Flute Length (mm) | 69.42 |
| Flute Length (Decimal Inch) | 2.7331 |
| Body Length (mm) | 56.00 |
| Body Length (Decimal Inch) | 2.2047 |
| Overall Length (mm) | 122.00 |
| Overall Length (Decimal Inch) | 4.8032 |
| Toolholder Material | Steel |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
