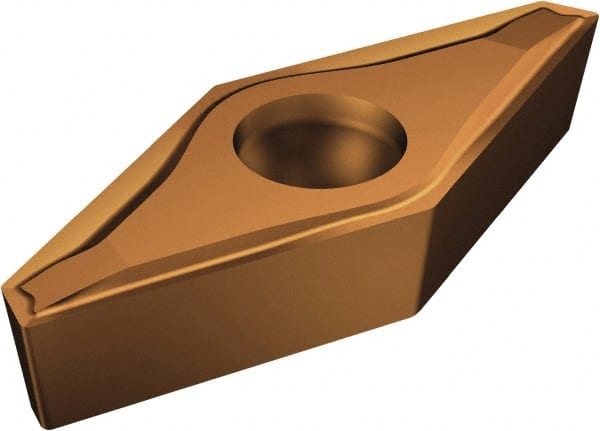

Sandvik Coromant - VCEX2203 F Grade 1125 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 0.1mm Corner Radius
Item #: 52067477
Brand: Sandvik Coromant
Model #: 5755886
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCEX |
| Insert Size | 220.3 |
| Material | Carbide |
| Length (mm) | 10.97 |
| Length (Decimal Inch) | 0.4319 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | F |
| Insert Length (Decimal Inch) | 0.4319 |
| OverallLength (mm) | 11.07 |
| Overall Length (Decimal Inch) | 0.4359 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | VCEX 11 03 01R-F 1125 |
| Relief Angle | 7 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shape | Diamond |
