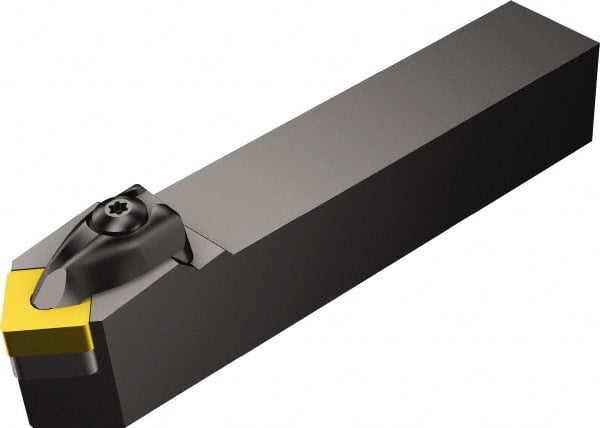

Sandvik Coromant - DSDNN, Neutral Cut, 45° Lead Angle, 1" Shank Height x 1" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, SNMG 432 Insert Compatibility, Series T-Max P
Item #: 52067881
Brand: Sandvik Coromant
Model #: 5731387
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DSDNN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | T-Max P |
| Lead Angle | 45 |
| Shank Width (Inch) | 1 |
| Shank Width (mm) | 25.40 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | SNMG 432 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Facing |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 152.40 |
| Back of Bar to Cutting Edge (Inch) | 6 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Length (mm) | 36.83 |
| Head Length (Decimal Inch) | 1.4500 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Width (Inch) | 1/2 |
| Insert Width (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
