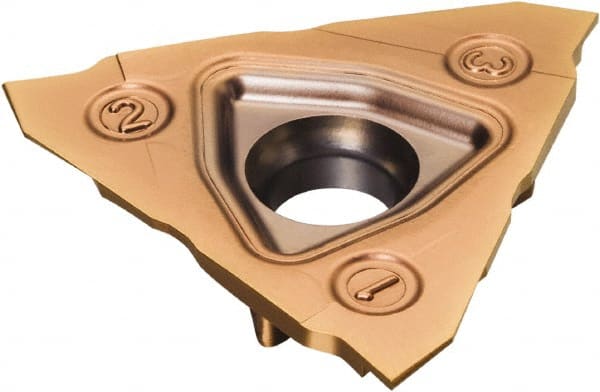

Sandvik Coromant - TN123T3 RS 3mm Cutting Width Carbide Grooving Insert - 6mm Max Depth of Cut, Neutral, 1.5mm Corner Radius, TiAlN Finish
Item #: 52068517
Brand: Sandvik Coromant
Model #: 5737079
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123T3 |
| Insert Size | T |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 3.73 |
| Cutting Height (Decimal Inch) | 0.1469 |
| Insert Seat Size | T |
| Chipbreaker | RS |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.4130 |
| Series | CoroCut 3 |
| Rake | Positive |
| ISO Number | N123T3-0300-RS 1125 |
| Manufacturers Catalog Number | N123T3-0300-RS 1125 |
| Overall Width (Decimal Inch) | 0.1180 |
| Insert Thickness (Decimal Inch) | 0.1469 |
