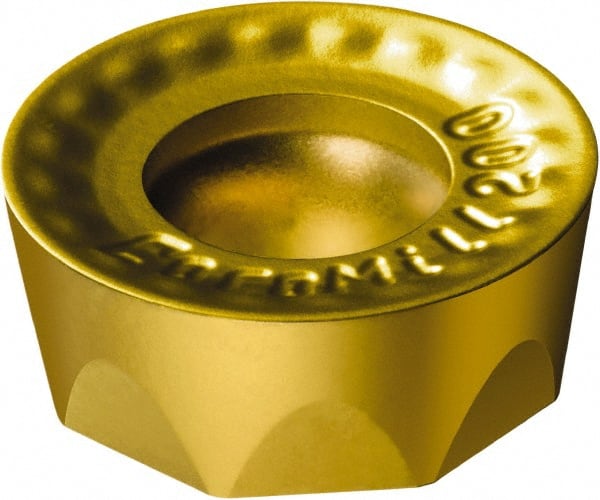

Sandvik Coromant - RCKT190600 KH Grade 1020 Carbide Milling Insert - TiAlN Finish, 1/4" Thick, 3/4" Inscribed Circle, 3/8" Corner Radius
Item #: 52069812
Brand: Sandvik Coromant
Model #: 5740528
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCKT |
| Insert Size | 190600 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (mm) | 6.35 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.3750 |
| Corner Radius (mm) | 9.53 |
| Hole Diameter (mm) | 6.50 |
| Hole Diameter (Decimal Inch) | 0.2559 |
| Coating Process | PVD |
| Included Angle | 0 |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | KH |
| Maximum Depth of Cut (mm) | 2.79 |
| Maximum Depth of Cut (Decimal Inch) | 0.1098 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | RCKT 19 06 00-KH 1020 |
