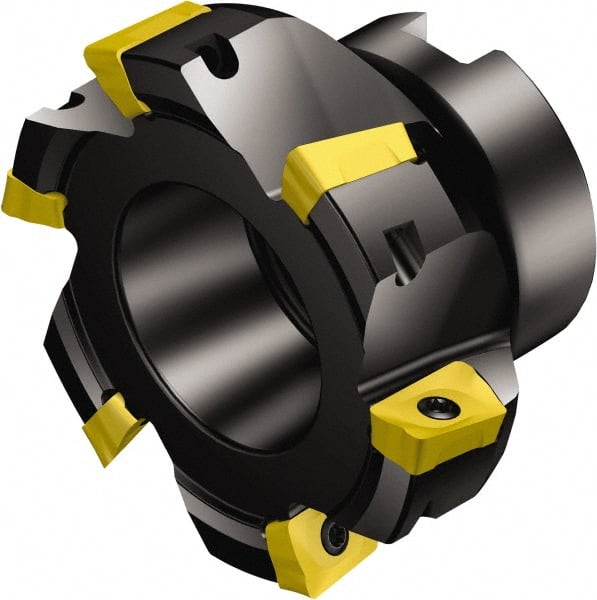

Sandvik Coromant - 5 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 15.4mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 40mm High, R390-18.. Insert Compatibility, Series CoroMill 390
Item #: 52071149
Brand: Sandvik Coromant
Model #: 5739682
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.80 |
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | R390-18.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 15.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.6063 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | RA390 |
| Number of Flutes | 5 |
| Rake | Positive (Axial) |
| Hub Diameter (mm) | 19.05 |
| Hub Diameter (Decimal Inch) | 0.7500 |
| Hub Diameter (Inch) | 3/4 |
| Keyway Width (mm) | 8.15 |
| Keyway Width (Decimal Inch) | 0.3209 |
| Maximum Body Diameter (Decimal Inch) | 1.9055 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 7800 |
| Pitch | Coarse |
| Cutting Edge Length (Decimal Inch) | 0.6063 |
| ISO Number | RA390-051R19-18H |
| Complete Insert Compatibility | R390-18.. |
| Toolholder Material | Steel |
