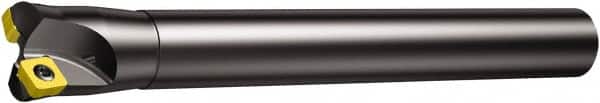

Sandvik Coromant - 3 Inserts, 17.65mm Cut Diam, 1" Arbor Diam, 1.2mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 10° Lead Angle, 10" High, R210-090412M Insert Compatibility, Through Coolant, Series CoroMill 210
Item #: 52071156
Brand: Sandvik Coromant
Model #: 5738752
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 17.65 |
| Cutting Diameter (Decimal Inch) | 0.6949 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 10 |
| Overall Height (mm) | 254.00 |
| Overall Height (Inch) | 10 |
| Overall Height (Decimal Inch) | 10.0000 |
| Insert Compatibility | R210-090412M |
| Series | CoroMill 210 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 1.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | RA210 |
| Number of Flutes | 3 |
| Rake | Positive (Axial) |
| Hub Diameter (mm) | 25.40 |
| Hub Diameter (Decimal Inch) | 1.0000 |
| Hub Diameter (Inch) | 1 |
| Maximum Body Diameter (Decimal Inch) | 0.6949 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 7400 |
| Pitch | Coarse |
| Cutting Edge Length (Decimal Inch) | 0.0472 |
| ISO Number | RA210-032O25-09H |
| Complete Insert Compatibility | R210-090412M- |
| Toolholder Material | Steel |
